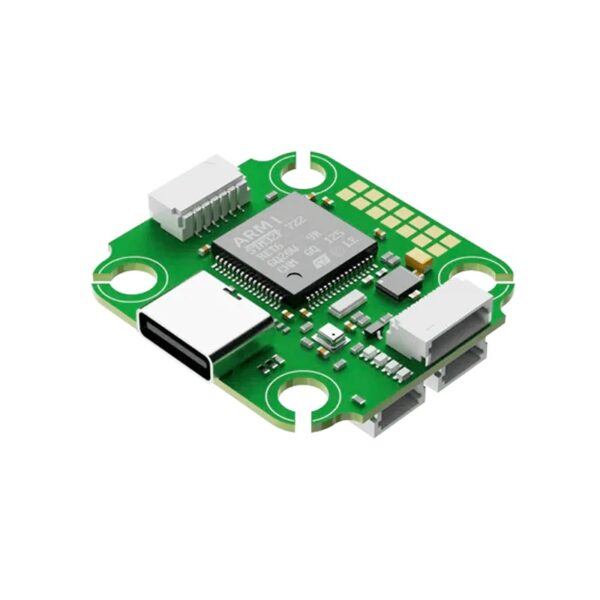

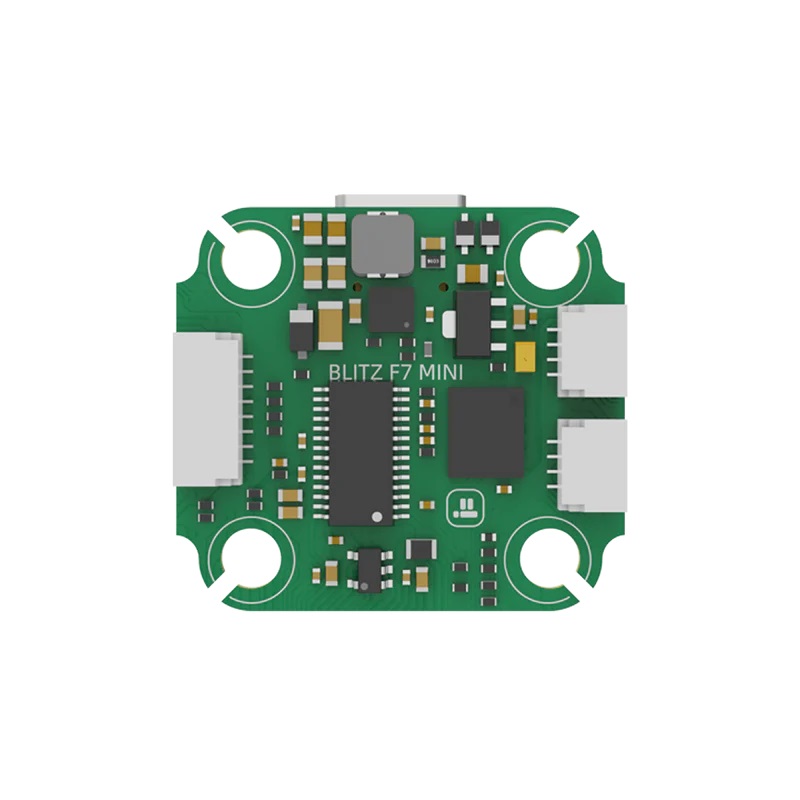

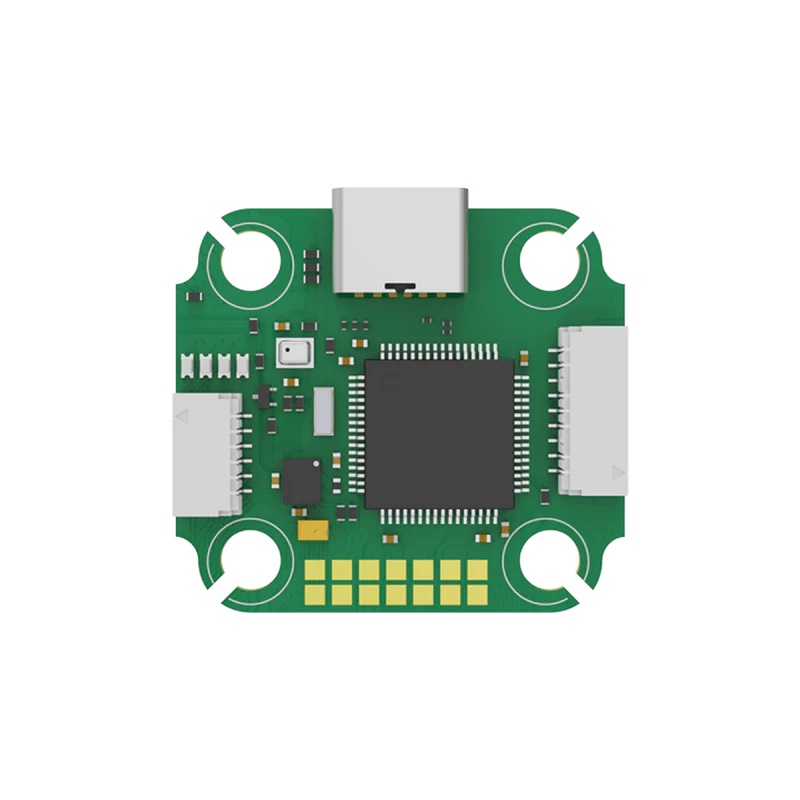

Our latest BLITZ Mini Flight Controller used in our iFlight BNFs. Ultra fast F7 MCU for 2-6S batteries. 20×20 mounting pattern. The perfect match for your new frame. Improved circuit design, better components and lower electrical noise! DJI HD VTX Connector (Plug-and-Play / No soldering required), FC indicator LEDs for visual debugging, with LC filter.

Specifications:

MCU: STM32 F722

Gyro: ICM42688

Barometer: DPS310

OSD Chip: AT7456

Flash: 8MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA/SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFRC-IFLIGHT_BLITZ_F722

Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws

Dimensions: 30.5×27 mm

Weight: 5g

Wiring Suggestions:

UART 1 for VTX HD / Analog

UART 2 for a Receiver

UART 3/4/5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemetry

Wiring Diagram:

https://drive.google.com/drive/u/1/folders/17Uf67I6ER_z-otviR0I7tSqO31W7S553

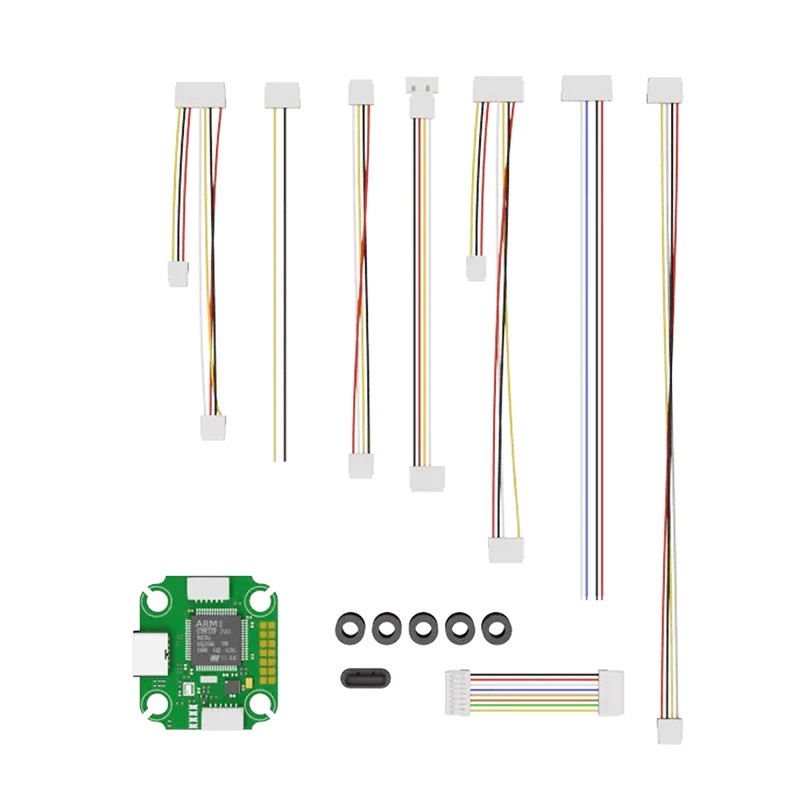

Packing List:

1 x BLITZ Mini F7 V1.2 Flight Controller

1 x FC connectors

1 x Silicon grommets
