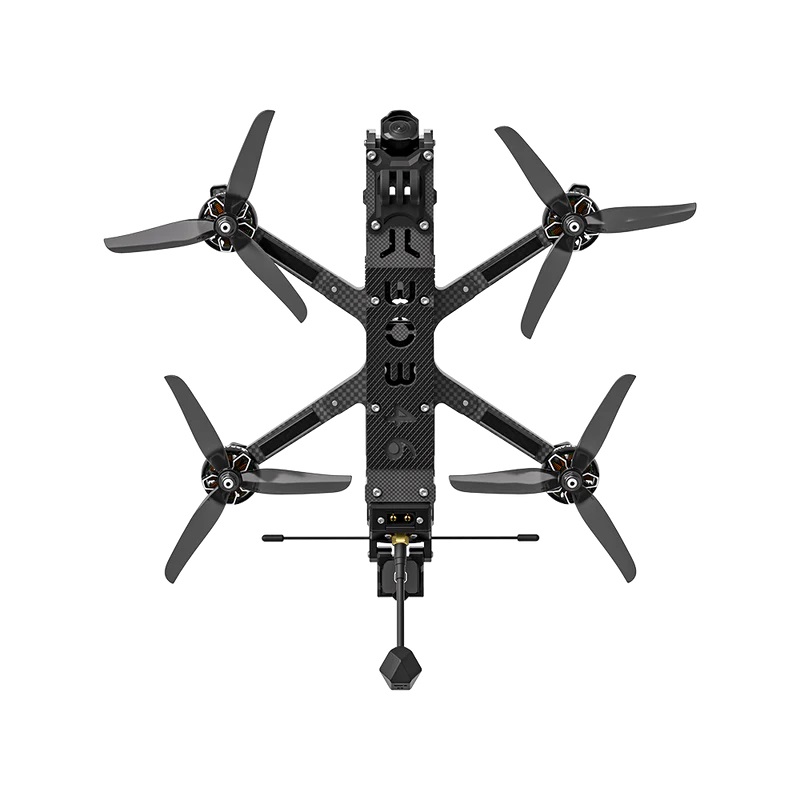

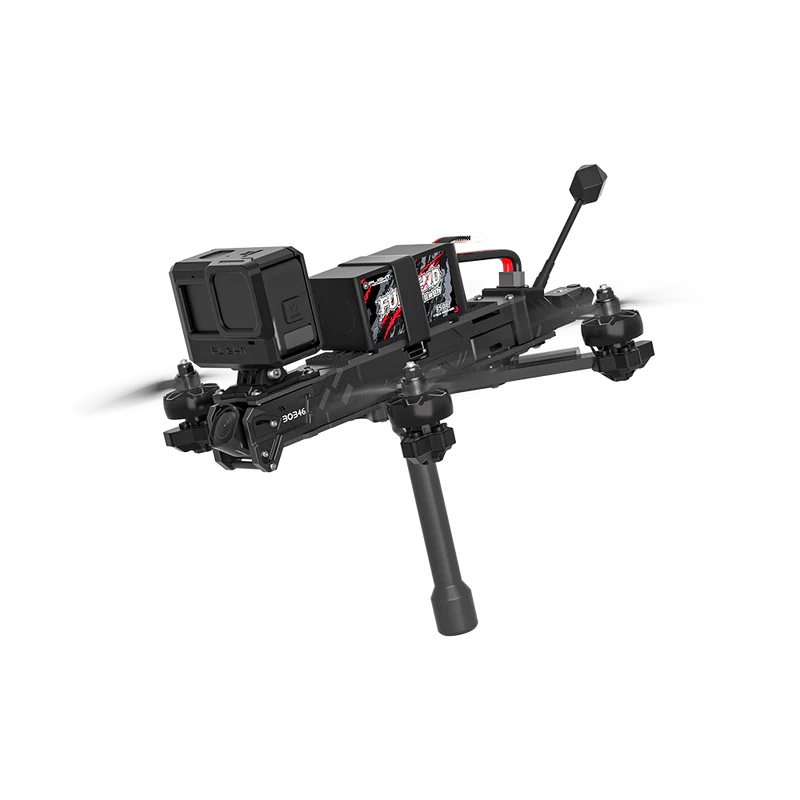

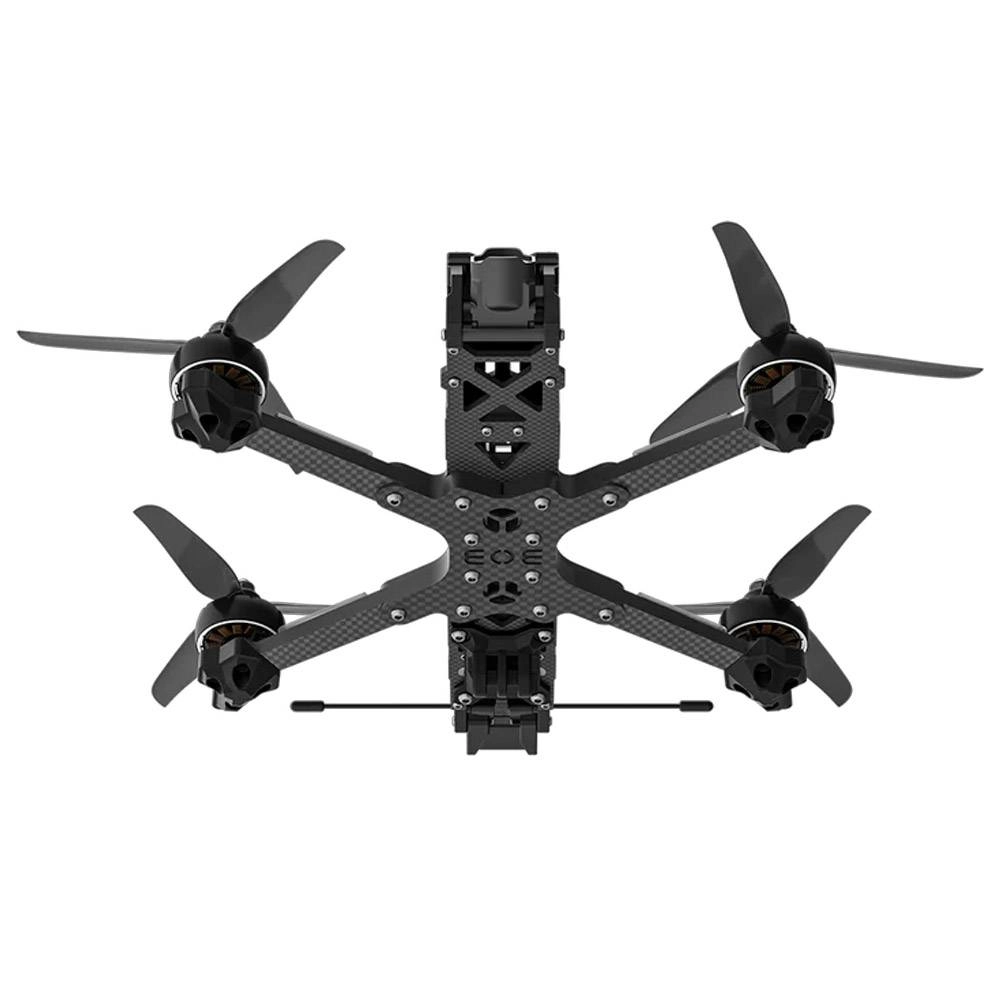

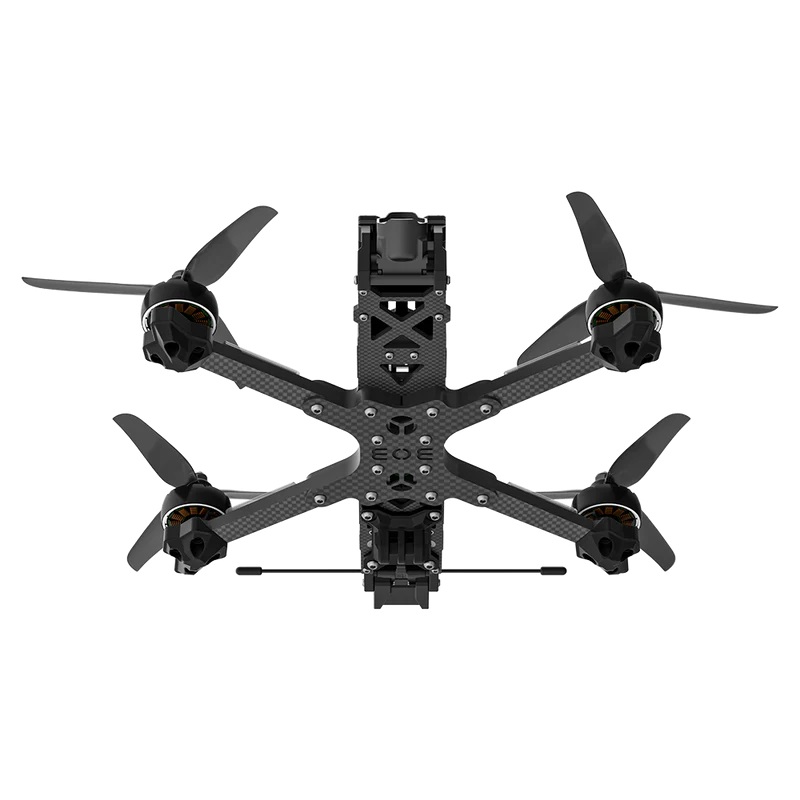

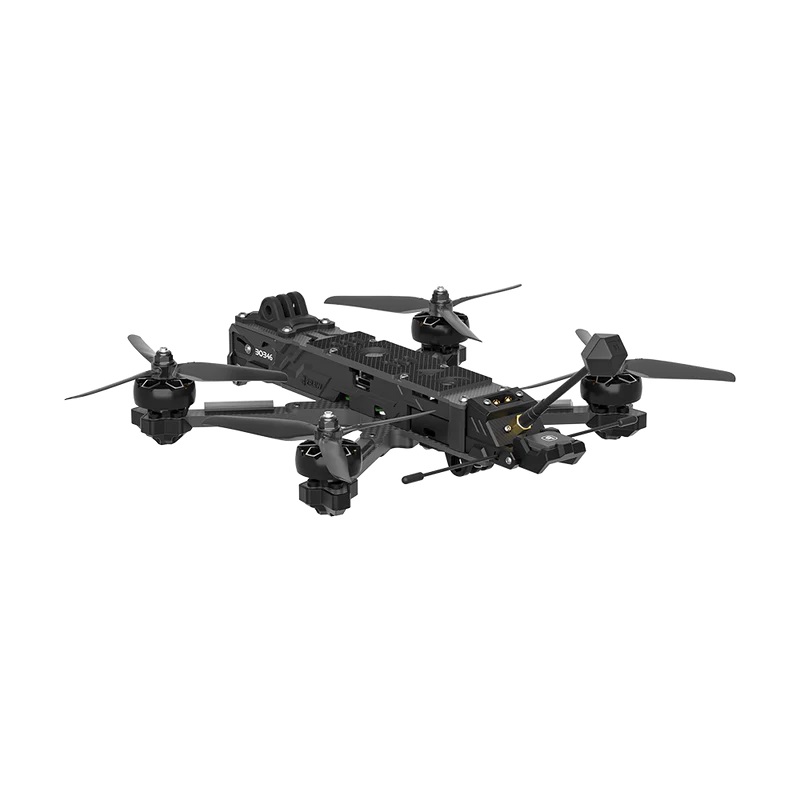

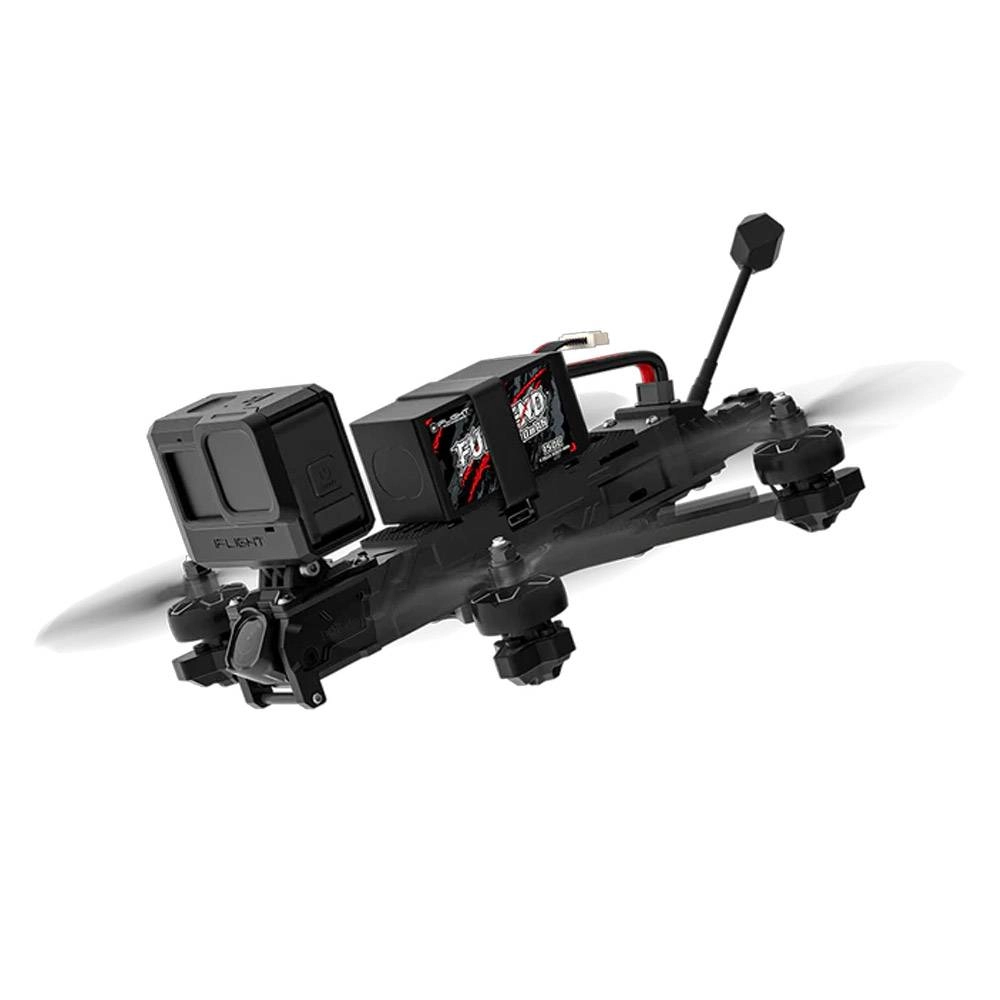

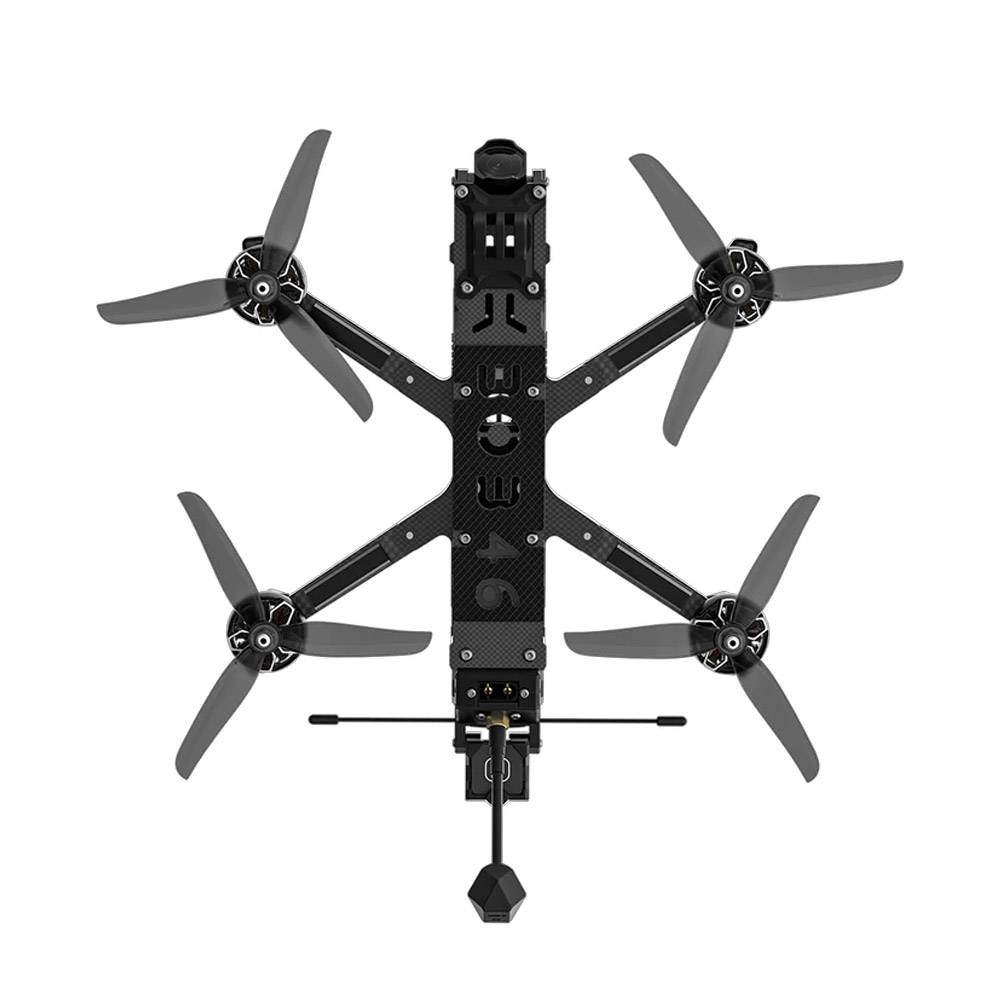

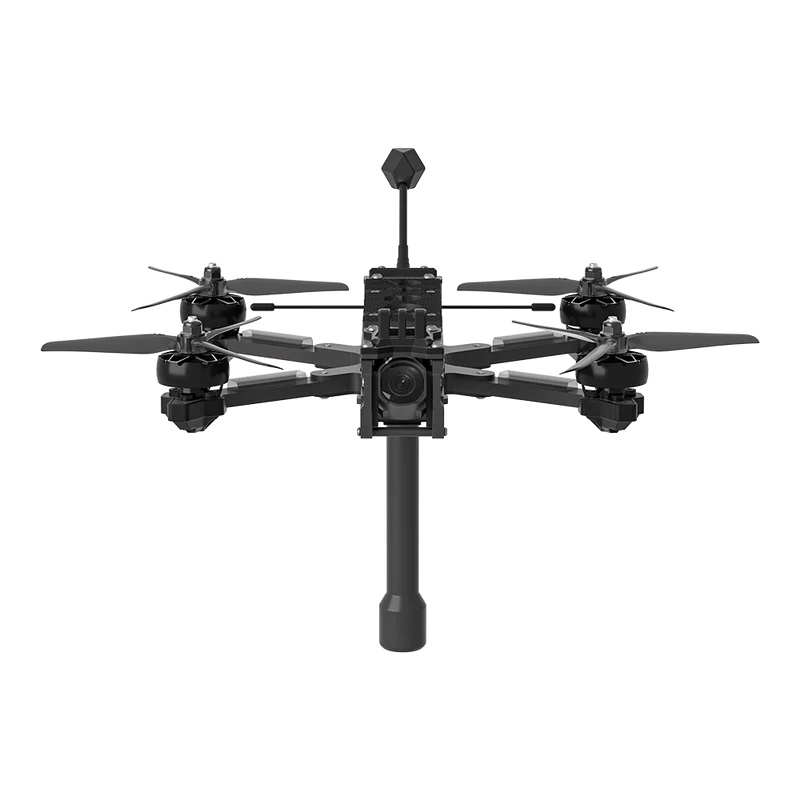

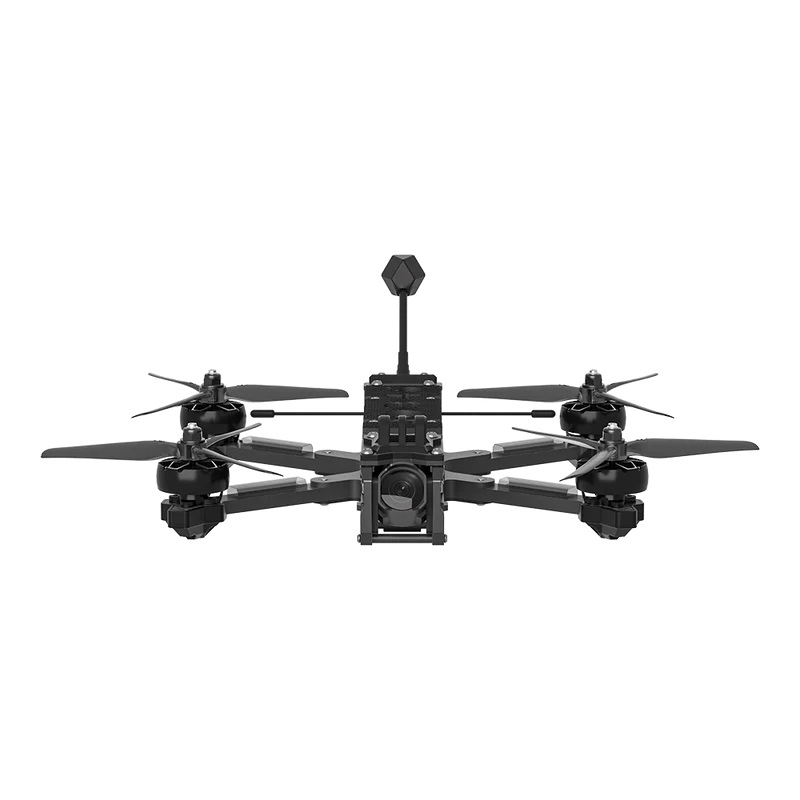

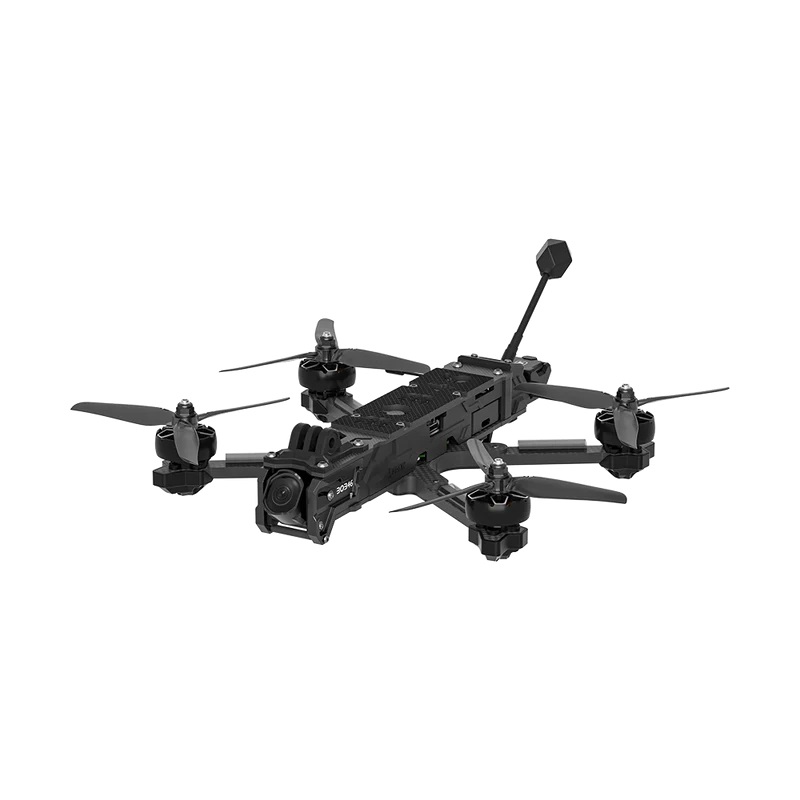

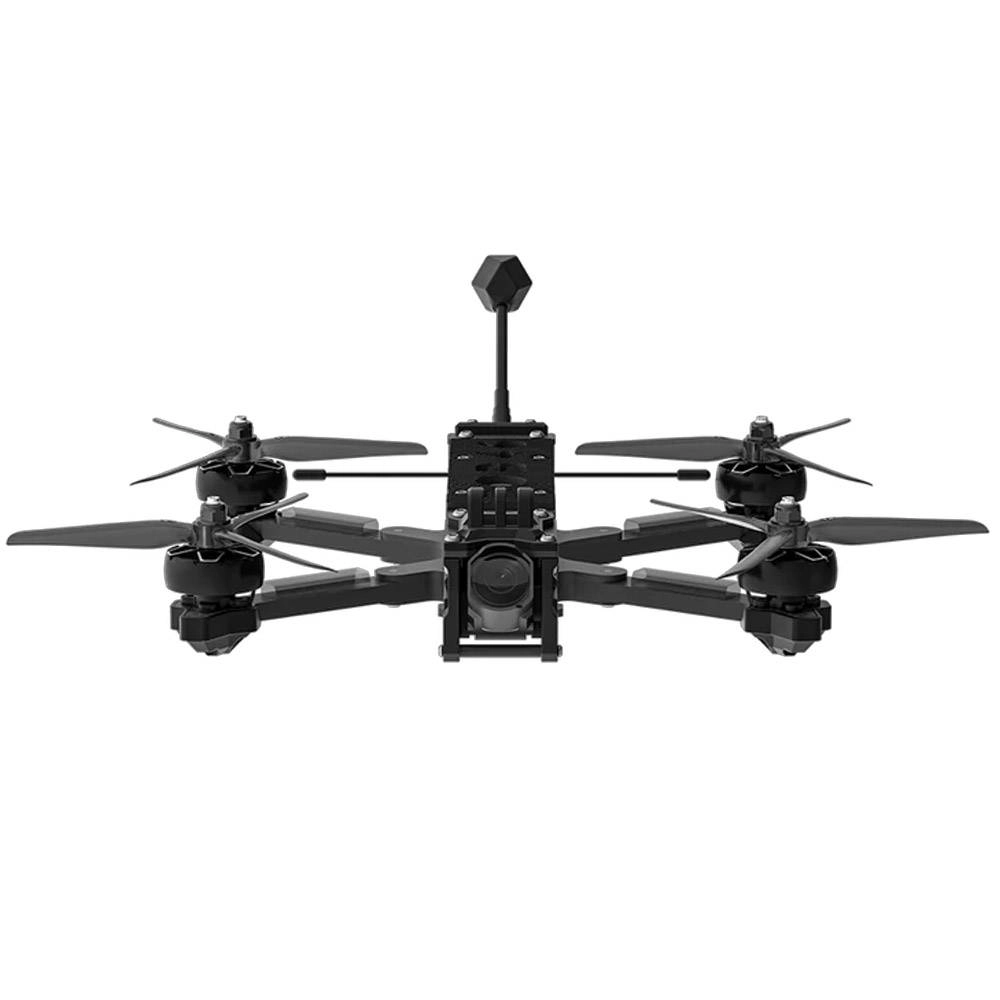

The Bob46 is the best of both 4 and 6 inch. 2RAW’s newest addition to its lineup in the 5inch category. Targeted at content creators who want a drone that has balanced well rounded performance. The BOB46 doesn’t compromise in any areas it allows for the creator to have maximum options to be used in almost every scenario.

No props in view from 40-0 degrees in both FPV feed and Action camera feed.

Front facing and reversible Action camera mounting options.

Larger body length to allow for bigger batteries for more flight time.

Small size for easy transport for content creation in remote locations

2RAW tuned, flawless footage in all conditions

Encased body to protect electronics from dirt and debris when filming

Recommended Accessories:

Default Propeller: Nazgul F5 Tri-blade Prop

Optional Propeller: GEMFAN Hurricane MAX 51377 Prop (for Nazgul)

Freestyle: DOGCOM 6S 1550mAh 150C Ultra Series Battery

Cinematic: DOGCOM 6S 1850mAh 150C Battery

Long Range: DOGCOM 6S 2200mAh 150C Battery

Max. Range: DOGCOM 6S1P 5000mAh Li-Ion Battery

Charger: HOTA D6 Pro 650W 1-6S Dual Channel AC/DC Smart Charger

GoPro Mount: 2RAW Slim GoPro TPU Mount

Product Name: BOB46 O4 6S HD BNF

FC: BLITZ Mini F722

ESC: BLITZ Mini E55 4-IN-1 ESC

Video Transmission: DJI O4 Air Unit Pro

Frame diagonal motor distance: 226mm

Motor: XING2 2207 1750KV  motors

Prop: Nazgul F5 propellers

Weight: 455±5g

Takeoff Weight: Approx.697±5g (With 6S 1480mAh)

Dimensions (L×W×H): 181*135*44mm

Max Speed: 165 km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 12-13 mins (No Load with 6S 1480mAh)

Max Wind Speed Resistance: Level 7

Operating Temperature Range: -20° to 40° C

Antennas: Single Antenna

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4, Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

1 x BOB46 O4 6S HD BNF

1 x Antenna

1 x Battery pads

2 x Prop (Pairs)

DJI Goggles 3 / DJI Goggles N3+ DJI FPV Remote Controller 3

DJI Goggles 2 / DJI Goggles Integra + DJI FPV remote control 2

(Or another Radio to match the RX in the Drone)

The flight control firmware needs to be configured to support the SBUS protocol so that the DJI FPV remote controller can be used.
