Caddx Air Unit Micro Version
190 $
Out of stock
- SKU - 1001
Caddx Air Unit Micro Version
190 $
- SKU - 1001
Out of stock
DESCRIPTION
Specification：
Weight
Air Unit (camera included): 41.6g
Antenna: 3.74g (MMCX straight);3.9g(MMCX elbow);6g( reverse polarity Female SMA)
Dimensions
AirUnit: 44×37.8×14.4mm

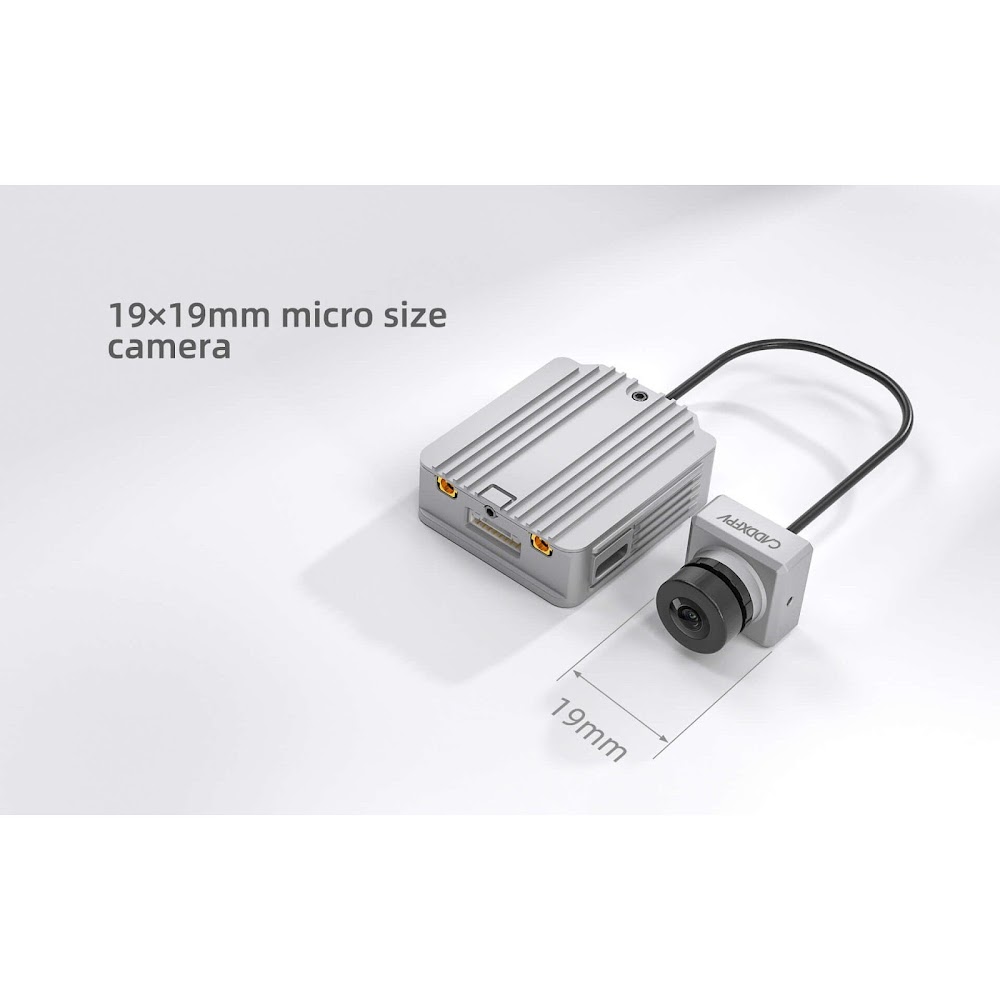

Camera: 20.7×19×19mm
Coaxial Cable:100mm
Operating Frequency 5.725-5.850GHz
Transmitter Power (EIRP): FCC/SRRC: <30dBm; CE: <14dBm
Min.Latency(end-to-end): Low Latency Mode(720p120fps):<28ms; High Quality Mode(720p60fps): <40ms
Max. Transmission Distance: FCC/SRRC:4km;CE:0.7km；
Video Format: MP4(Video format: H.264；Audio format: AAC-LC)
I/O Interface: USB-C,MMCX,3-in-1port, microSD cards lot
Supported Flight:Beta Flight Control System
Operating Temperature Range: 0° to 40°C(32° to 104°F)
Input Power:7.4-17.6V
Camera
Sensor:1/3.2”CMOS；
Effective Pixels:4M
Lens: 2.1mm,f/2.1
Shutter:Rolling shutter
ISO:100-25600
FOV: 150°(D);122°(H);93°(V)
Features：
-4-in1 Closed Loop control for the DJI FPV RC
-Embedded remote controller receiver
-8 Channels for up to 8 Drones
-Multi-antenna technology
-1080p Aerial Footage
-Micro Sized
Package Included：
1*Caddx Air Unit(with camera)
1*Coaxial Cable
2*Antennas
