Karearea TOA BI-TURBINE 2004-1950KV (V2)
25 $
16 in stock (can be backordered)
- SKU - 1456
Karearea TOA BI-TURBINE 2004-1950KV (V2)
25 $
- SKU - 1456
16 in stock (can be backordered)
DESCRIPTION
NEW TOA BI-TURBINE V2
(No need for CW and CCW)

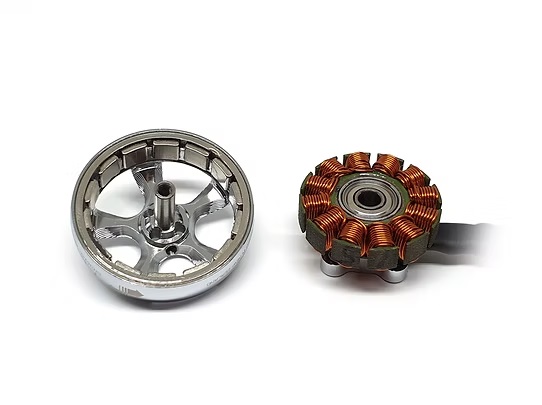

Completely redesigned bell:
Produces about 72% cooling effect compared original Turbine motors but the design has bi-directional turbine blades!
3D CNC INNER TURBINE BI-BLADES
SPEC : 2004-1950KV (V2)
Configuration / 12N14P
1Pice Unibody outer motor bell (7075-T6 Aero G Duralumin with High quality electrical plating)
Shaft / TC4 ย Titanium
Stator / Kawasaki 0.15 (0.1-0.12 Air gap)
Bearing / NSK JAPAN 693 (3x8x3)
Magnet / N 55 SH (Curved Magnet)
Weight / 15.26g (Excluding Cable)
Idle current / @10v(A) 0.4A 1950KV
Copper coils / Military Grade 260C* High-temp protect single wire
No of Cells(Lipo) / 2-6S
Cable length / 24AWG-150mm
Prop mounting shaft diameter /1.5mm
Installation hole position /12ร12mm๏ผM2
Prop / 3.5inch~5inch
Shaft Diameter / 3.0mm
