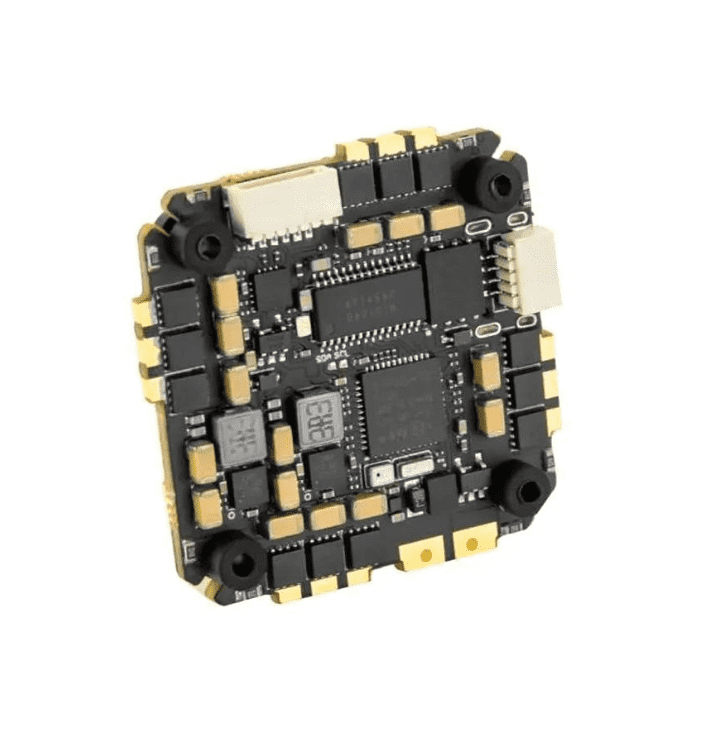

The Lumenier LUX HD AIO G4 Flight Controller + ESC is a powerful AIO ready to power the DJI O3 in a simple configuration. It also works great on standard analog systems with the onboard analog OSD chip. The LUX HD AIO G4 builds on all the best features of its predecessors and further improves on hardware components and layout, and is now dedicated to a design for the DJI systems. This AIO uses a G4 processor along with top-of-the-line hardware from the 35A AM32 3-6S ESC powered by four F4 processors! Unleash the capabilities of your FPV Racing Quadcopter with the Lumenier LUX HD AIO G4 Flight Controller! This LUX HD AIO G4 comes in a standard 25x25mm form factor weighing only 10.3g.

Note: This AIO works with both the DJI O3 and other DIgital FPV Systems. This AIO is also Analog compatible.

• Low resistance Mosfet with a Metal case, up to 6s 35A supported
• Analog current sensor3~6S Lipo (12.6~25.2V) Input
• 16M Flash Memory Blackbox
• 25x25mm Mounting Pattern
• G473 Flight Controller
• OSD (Analog / Digital)
• ICM42688 Gyro
• 35A AM32 ESC
• DJI Ready

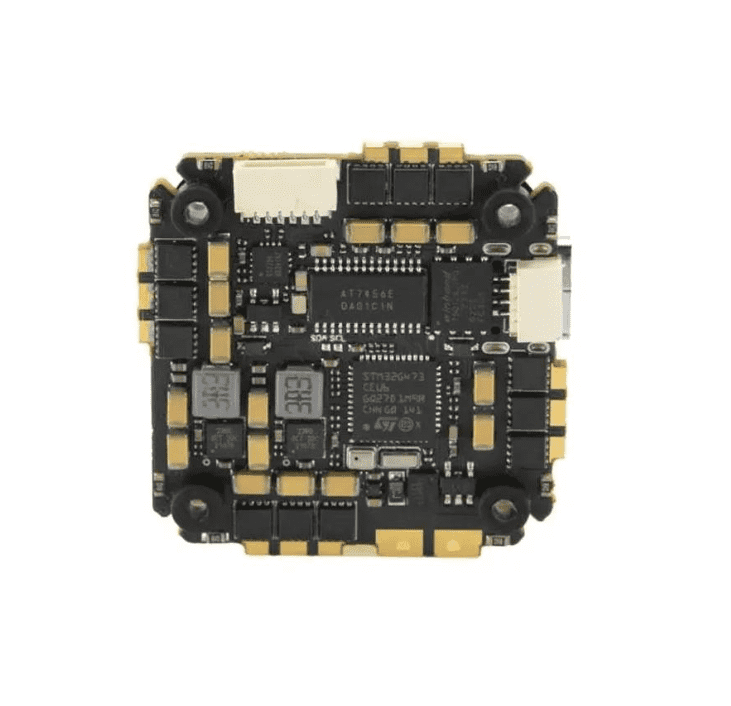

• MCU: STM32G473 / 170Mhz / 512KB Flash
• BEC: 2x BEC, 5V and 10V, 2.5A each
• VBAT Input: 8-32V, 3-6S Lipo
• Blackbox: 16MB (128M Bit)
• MOSFET: Low resistance
• Amperage: 35A up to 6S
• Current sensor: Analog
• Dimensions: 36x36mm

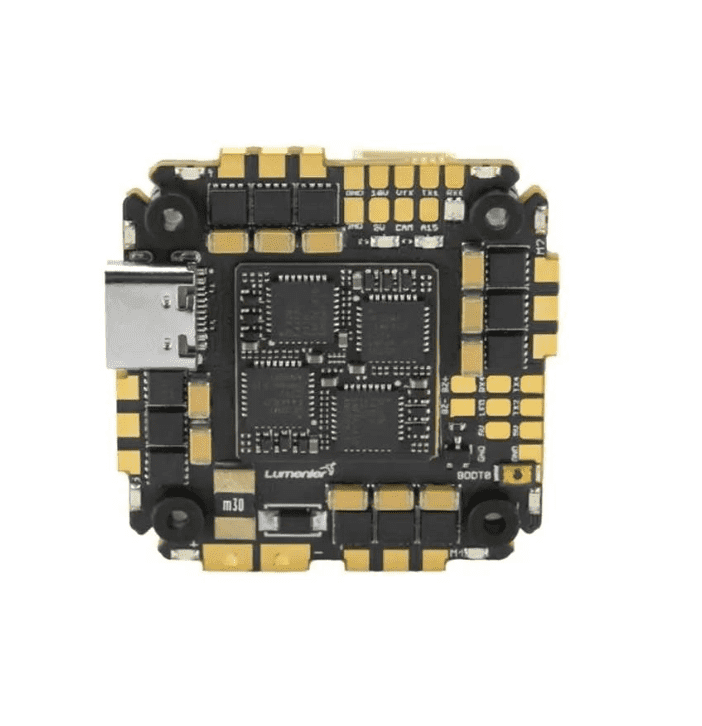

• ESC MCU: F4 AM32
• DJI Digital Port: Yes
• Gyro: ICM42688
• LED: WS2812b
• FC MCU: G473
• PMW Output: 4
• Weight: 10.3g
• Beepers: Yes
• OSD: Yes
• 12C: 1

• Lumenier LUX HD AIO – G4 Manual
• Download the LUX HD AIO-G4 .hex file for Betaflight 4.5.0 (comes pre-installed on the board)

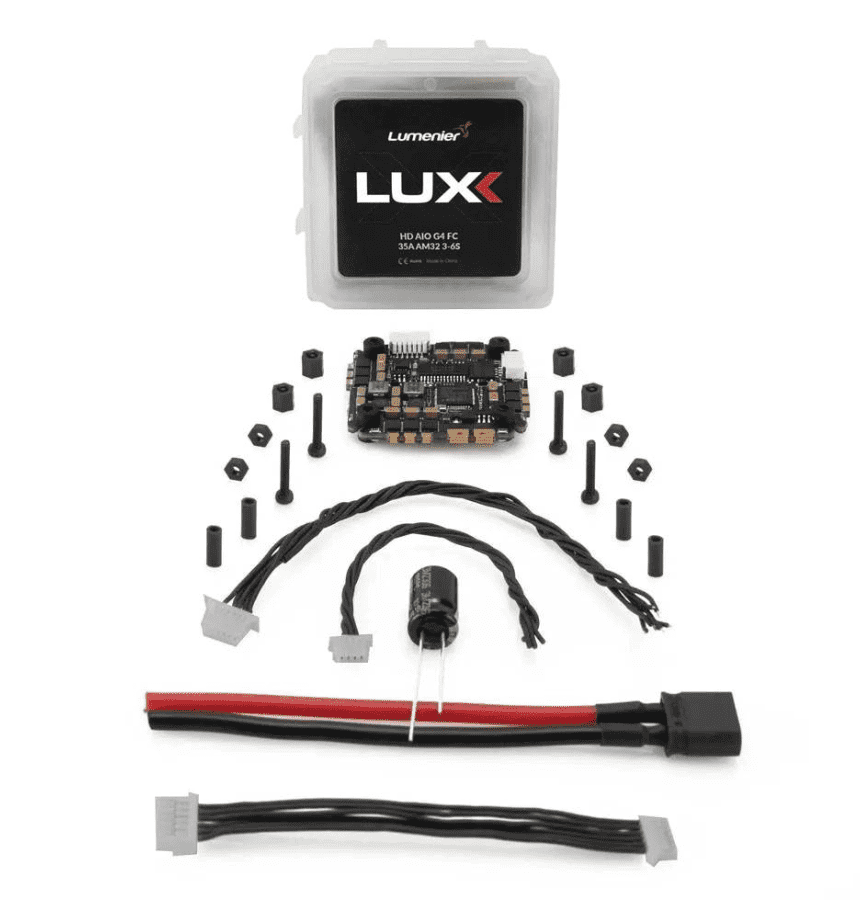

• 1x Lumenier LUX HD AIO – G4 FC + 35A AM32 3-6S ESC
• 1x 5-Pin Micro JST Cable
• 1x DJI Plug-N-Play Cable
• 1x 220uF 25V Capacitor
• 1x XT30 LiPo Pigtail
• 1x 4-Pin Micro JST
• 1x Hardware Set
