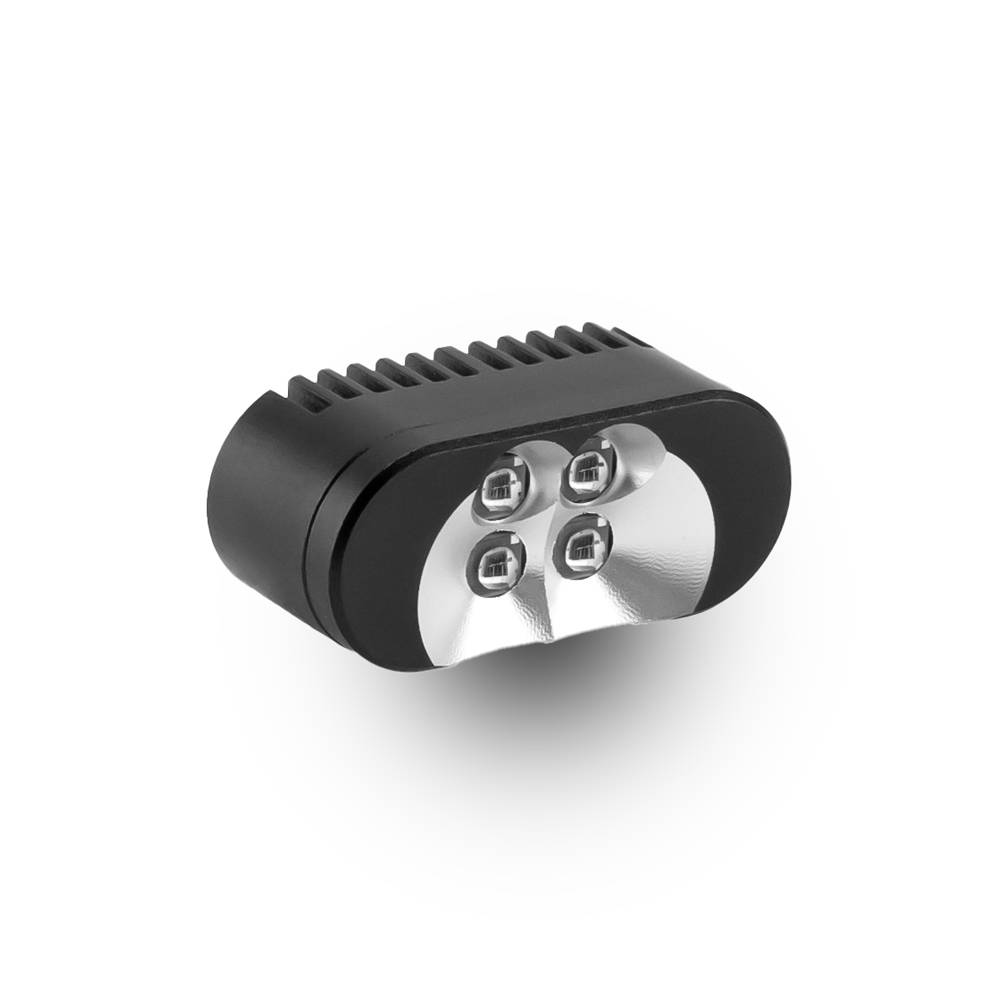

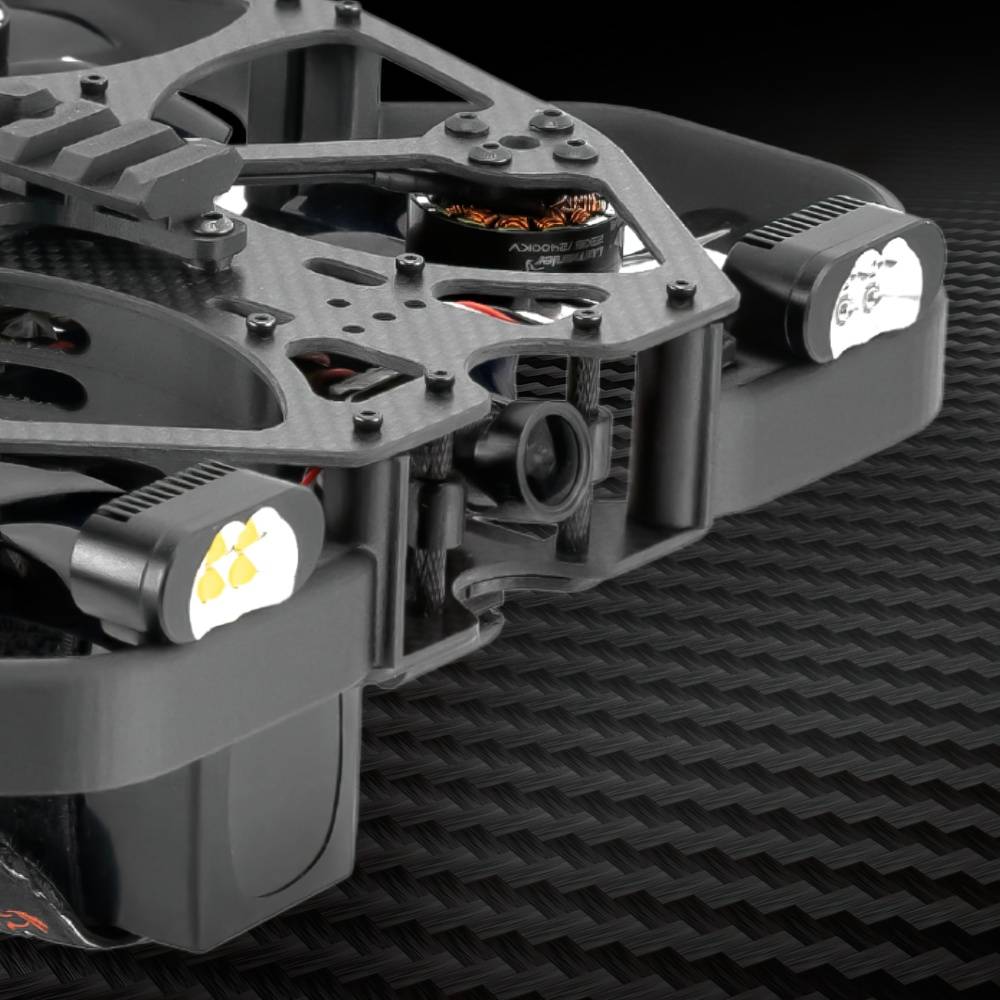

The Lumenier Pill LED – IR is an infrared LED module designed for maximum visibility in extreme low-light environments when paired with a low-light camera. Features advanced passive cooling and built-in thermal throttling for reliable, long-lasting operation. Its compact size and high-output efficiency make it ideal for small drone applications, providing infrared illumination without adding unnecessary weight. The Lumenier Pill LED ensures optimal light output while protecting components from heat damage, making it perfect for FPV freestyle, aerial photography, search-and-rescue missions, or inspection tasks in low-light environments.

• Multiple operation modes selectable by PWM input: 50% power, 100% power, Strobe, and Off

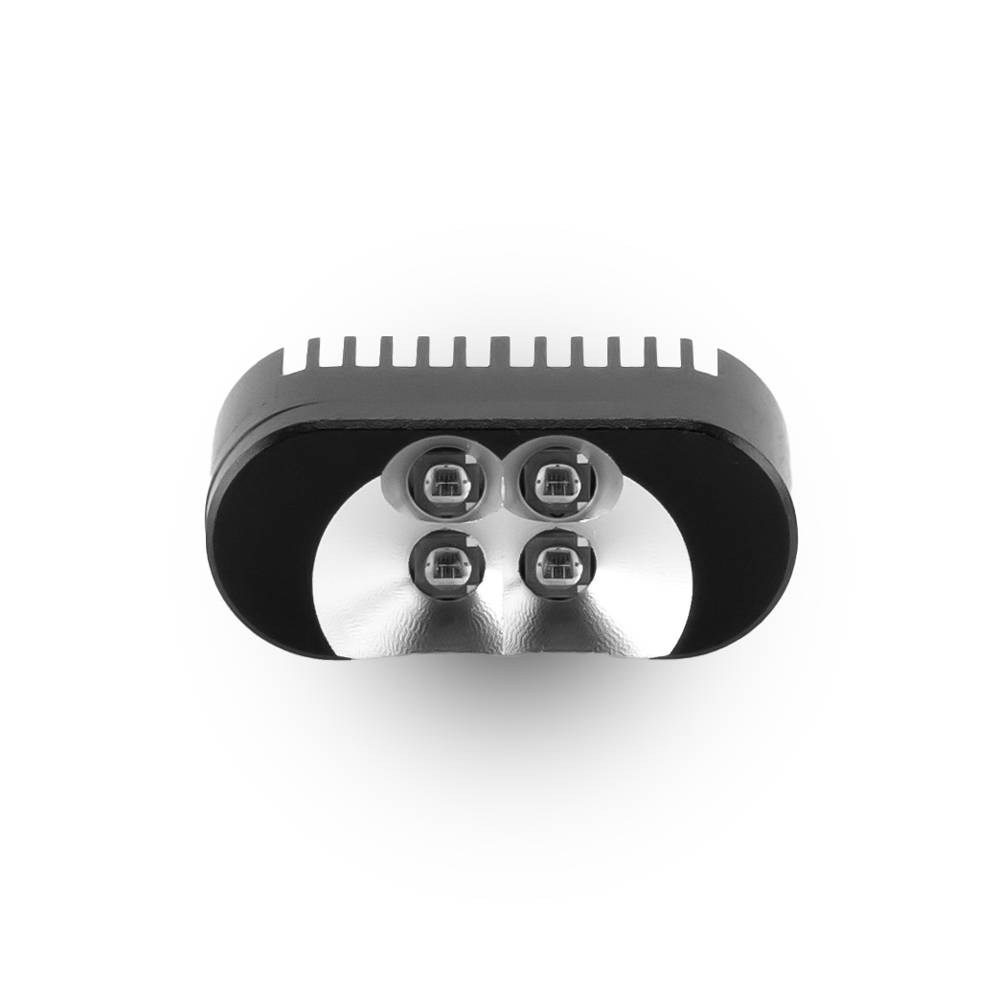

• 4x Infrared LEDs with a 60° and 120° reflector angle for optimal light spread
• Efficient power design with a wide voltage range of 9-26.1V (3S-6S)

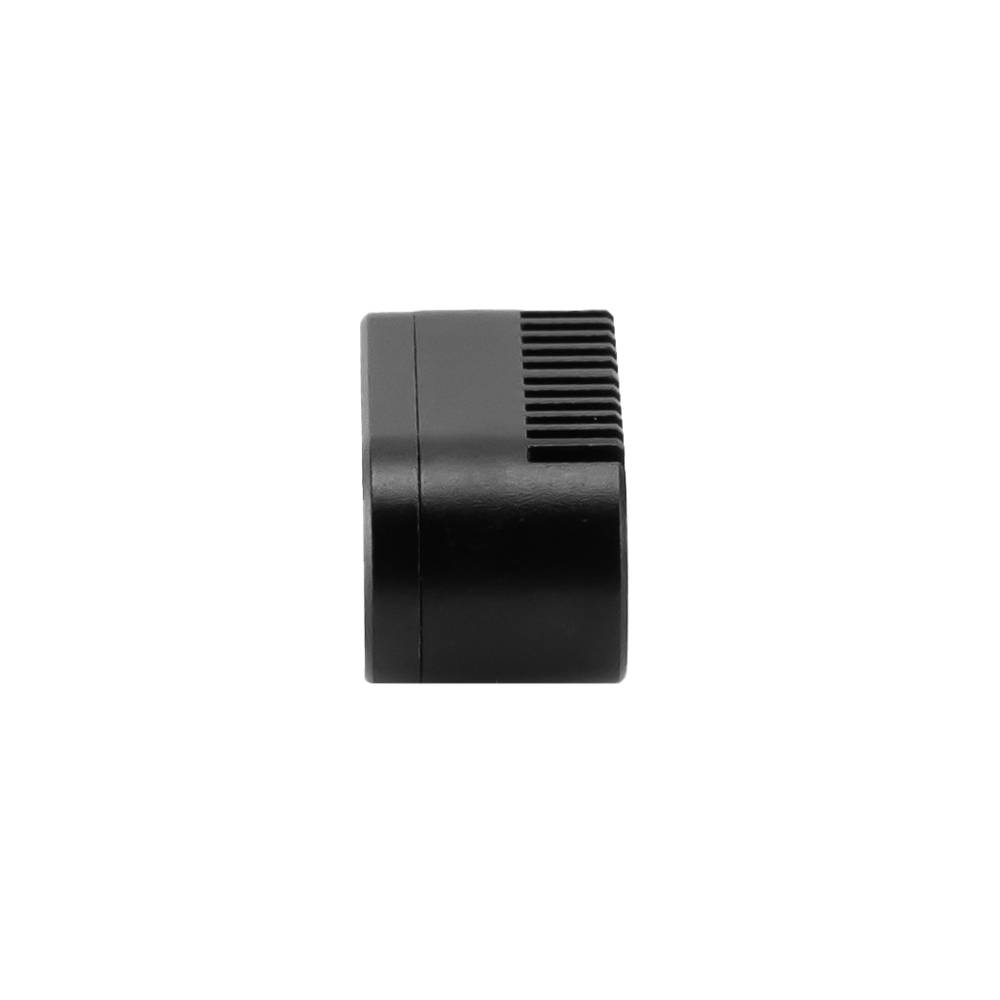

• Aluminum casing provides passive cooling during flight

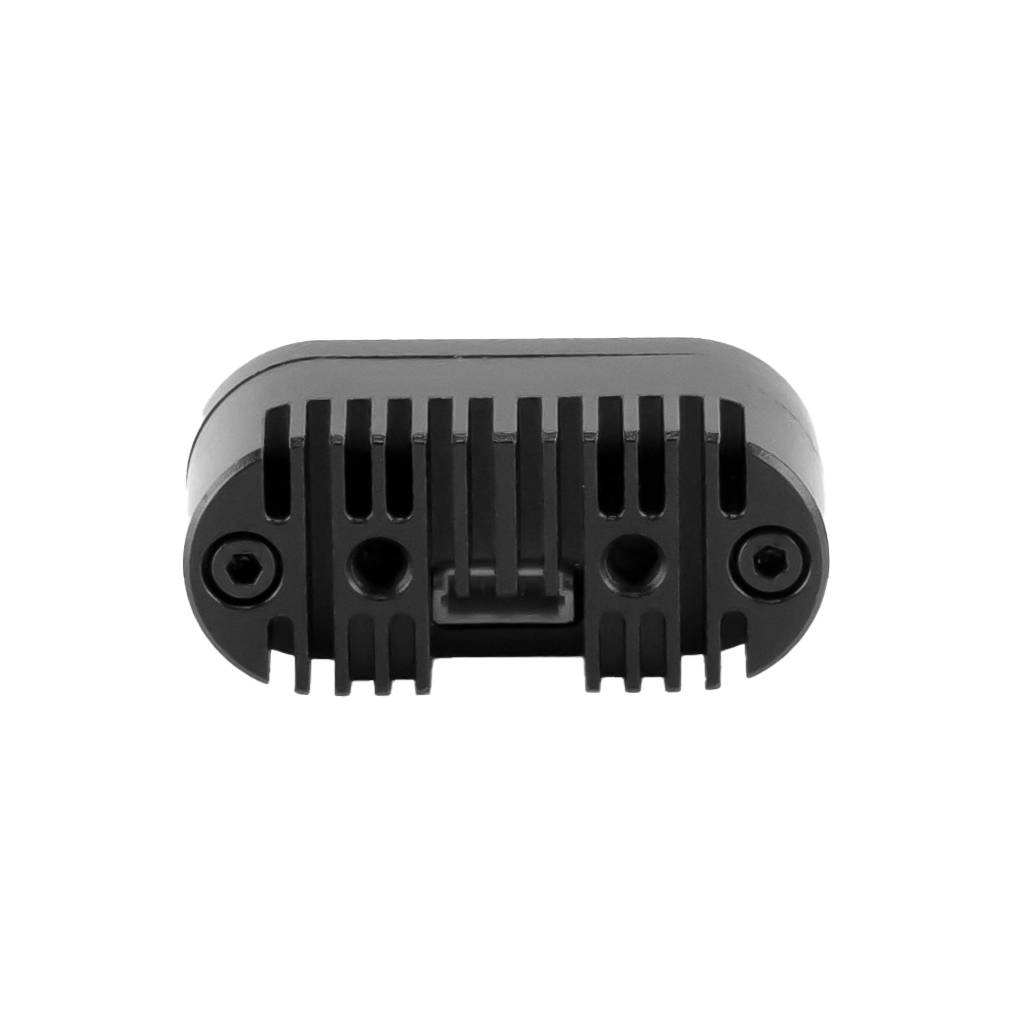

• M3 mounting holes on the rear and bottom of the case
• 1400 Lux at max power with active cooling
• Miniature form factor
• Lightweight 10g

• PWM Values for Operation modes: 50% Power=1100, 100% Power=1300, OFF=1500, STROBE=1800
• Mounting Dimensions: M3x0.5, 12.5mm distance
• Voltage Range: 9-26.1V (3S-6S)
• Max Amp Draw: 0.81A
• Size: 32 x 14 x 14mm
• Product Weight: 10g

IMPORTANT NOTES

• For optimal performance, pair with a low-light camera. The temperature sensor onboard will modulate LED Power to prevent over-heating and protect components from damage
• When mounting directly to power input pads, a capacitor is required.

•  Lumenier Pill LED Manual

• 1x Lumenier Pill LED Module – Infrared IR
• 1x SH-5-Pin to Pigtail
