Say goodbye to dirty electronics after every crash! Our innovative frame minimizes contamination on your flight controller and ESCs, helping to prevent failures and short circuits. Designed with strategic airflow for superior cooling and cleanliness, it delivers outstanding performance without compromising weight. Compatible with the DJI O4 Pro Air Unit, it features illuminated side panels and 360-degree TPU protective parts, providing enhanced protection and versatility for your flying experience.

O3 to O4 was upgraded for the DJI O4 Pro Air Unit:

New Camera Mount for DJI O4 Pro Air Unit

New Silicone side panels

Different Screws

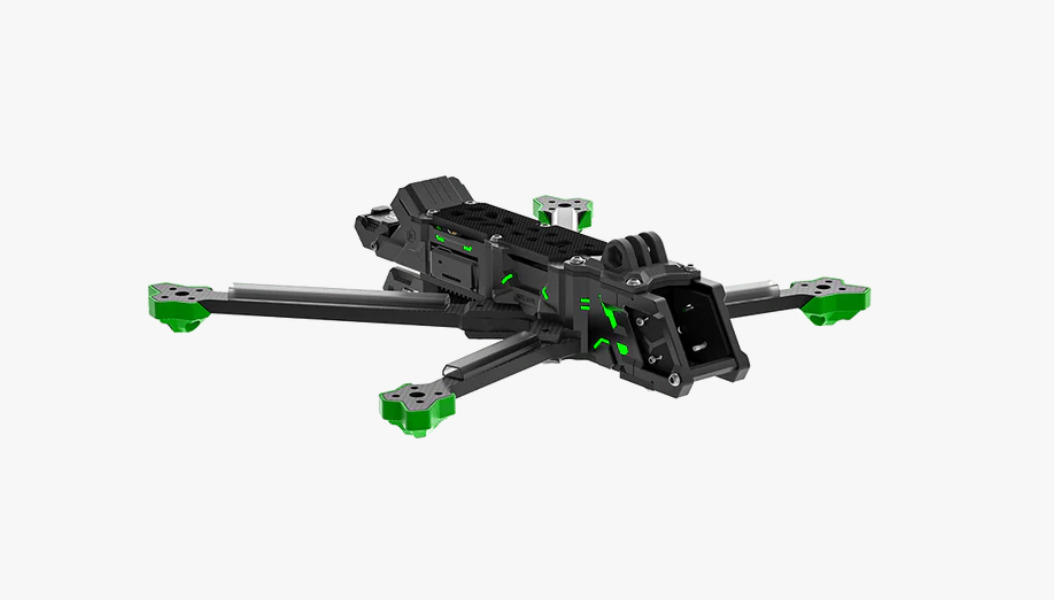

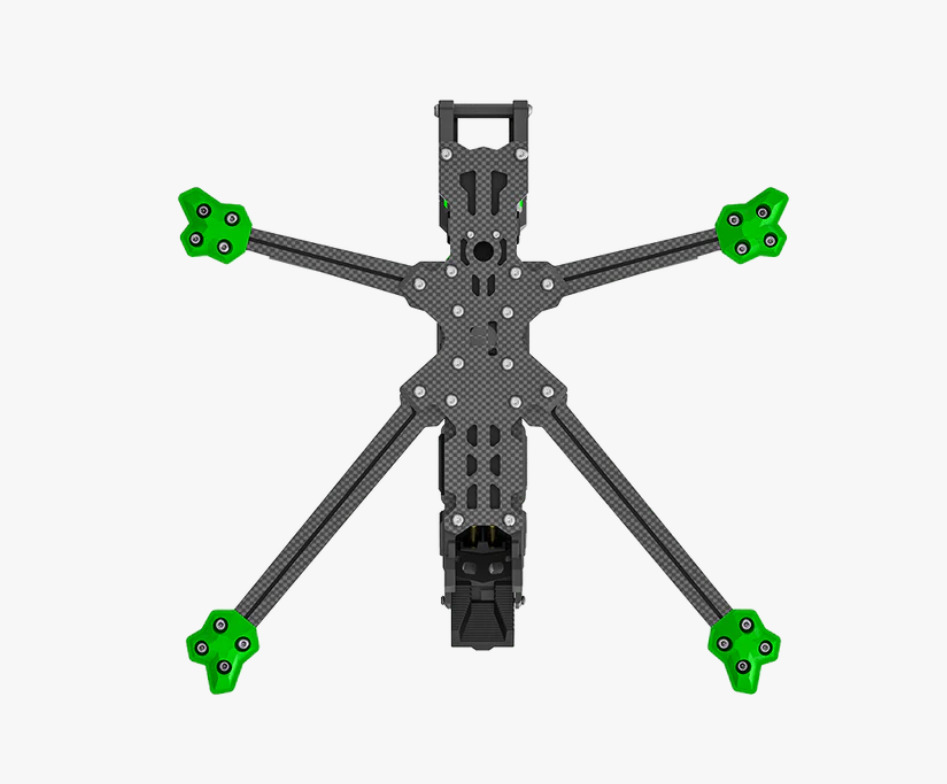

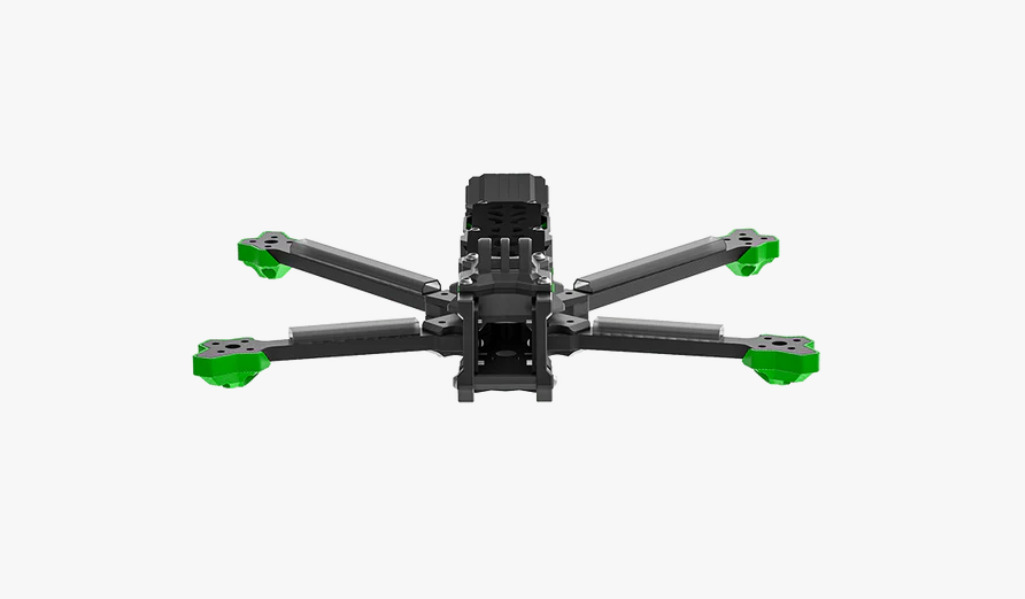

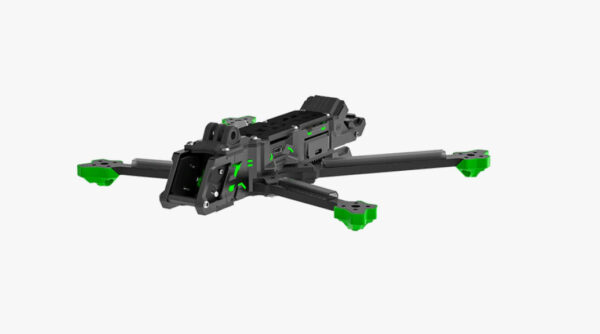

Product Name: Evoque F6 V2 O4 Frame Kit

Frame wheelbase: 262 mm (DeadCat)

Frame Dimension: L209*W162*H36 mm (DeadCat)

Arm Thickness: 6mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Camera Plate Thickness: 3mm

Max Flight Stack Height: 22mm

Max VTX Height: 22mm

FC Mounting: 20*20/Φ3mm

Motor Mounting: 16*16/Φ3mm

VTX Mounting:  25.5*25.5 φ2mm

Weight: 269g±5g

Compatibility: DJI O4 Pro Air Unit/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX

1 x Evoque F6 V2 O4 Frame Kit

2x IPEX to RP-SMA Antenna Pigtails

1 x Dual Antenna TPU

1 x GoPro TPU Base Mount

1 x Screw Bag

4 x TPU Arm guard

2 x Anti-slip Battery Pad

2 x Battery Strap

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
