For seasoned wing pilots, affordable high quality flight controllers have been far and between. Shortcomings in either supported software, redundancy on hardware, or price, have made it hard to pick a clear contender for your next project.

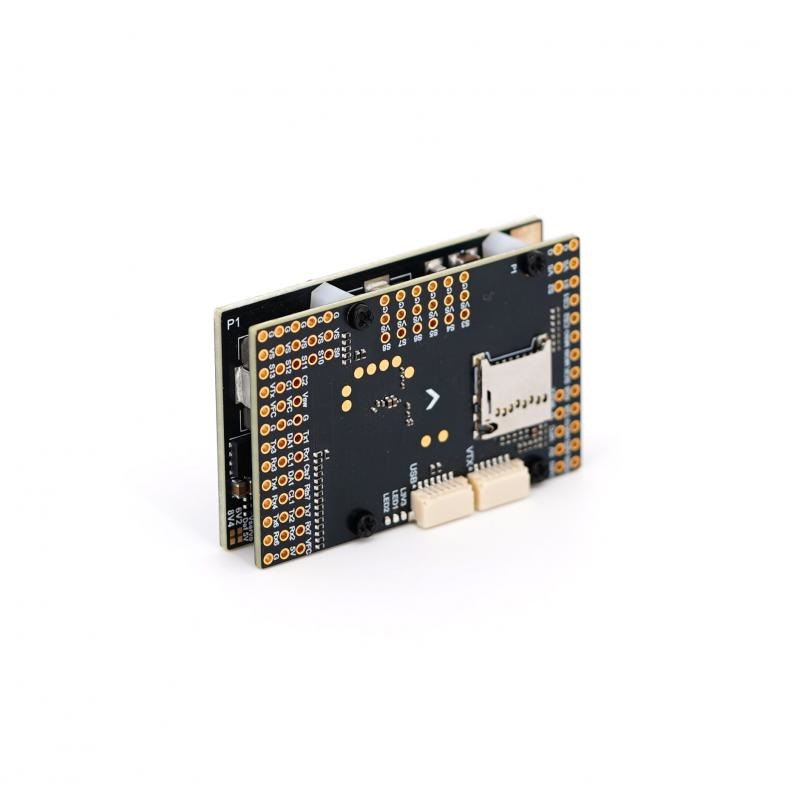

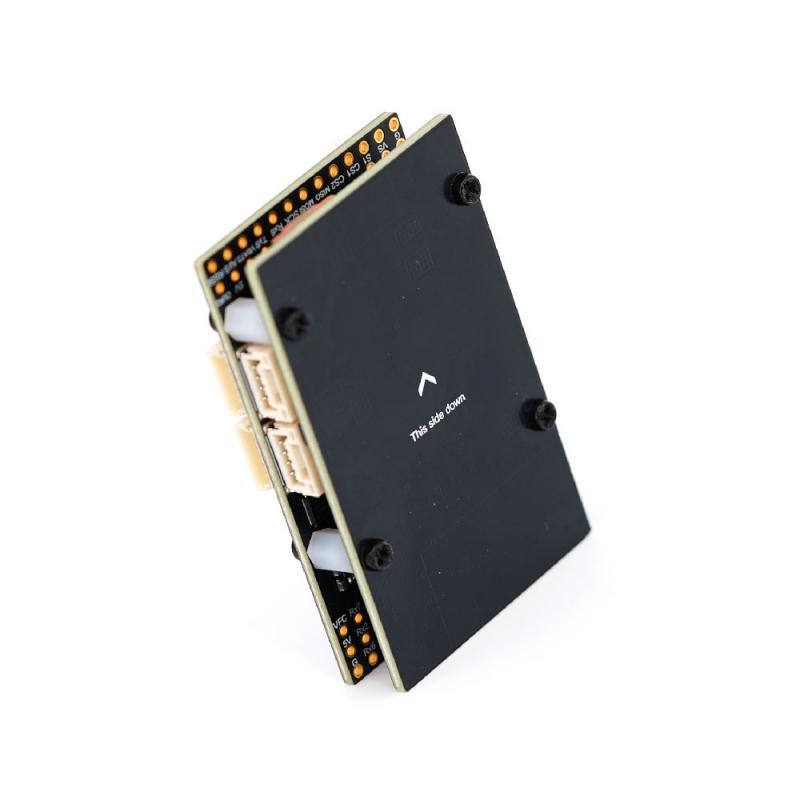

Introducing the TBS Lucid H7 Wing FC. Full-featured, versatile, reliable, and affordable. Behold! Our giant list of specs:

Specifications:

• MCU: STM32H743VIH6, 480MHz, 2MB Flash
• Input voltage: 8V-50.4V (3-12S)
• Output power: 8A cont./10A peak BEC. 5V, 6V, 8.4V (selectable)
• Channels: 13x PWM (including LED)
• Gyro: ICM42688 x 2 (SPI1 & SPI4)
• Baro: DPS310 (I2C2)
• Peripherals: 7x UART, 2x I2C, 1x CAN
• Measurements: 6x ADC (Vbat, Current, CB2, CU2, RSSI, AirSpeed)
• High speed ports: MicroSD BlackBox, SPI3 on pin headers
• Analog FPV: Switchable dual camera inputs, AT7456E OSD, 5V/9V/12V support at 5A (selectable)
• Digital FPV: “DJI”-connector with SBUS and OSD communication
• Current sensor: 165A cont. / 240A peak
• FC BEC: 5V 3A cont. (for FC&peripherals)
• FPV BEC: 9V/12V 5A (selectable)
• Dimensions:  54 x 36 x 13 mm

Tech details:

• Battery Voltage Sensor: 1K:20K (Scale 2100 in INAV,  BATT_VOLT_MULT 21.0 in ArduPilot)
• ADC VB2 voltage divider: 1K:20K
• ADC AirSpeed voltage divider: 20K:20K
• ArduPilot Target: TBS_LUCID_H7_WING
• INAV Target: TBA
• Betaflight Target: TBA

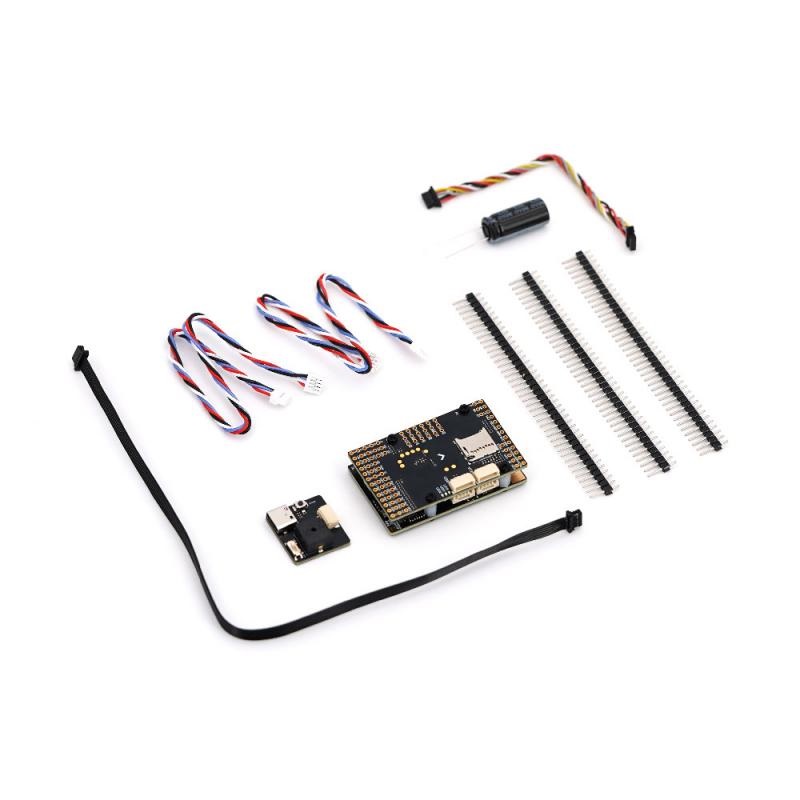

Package contains

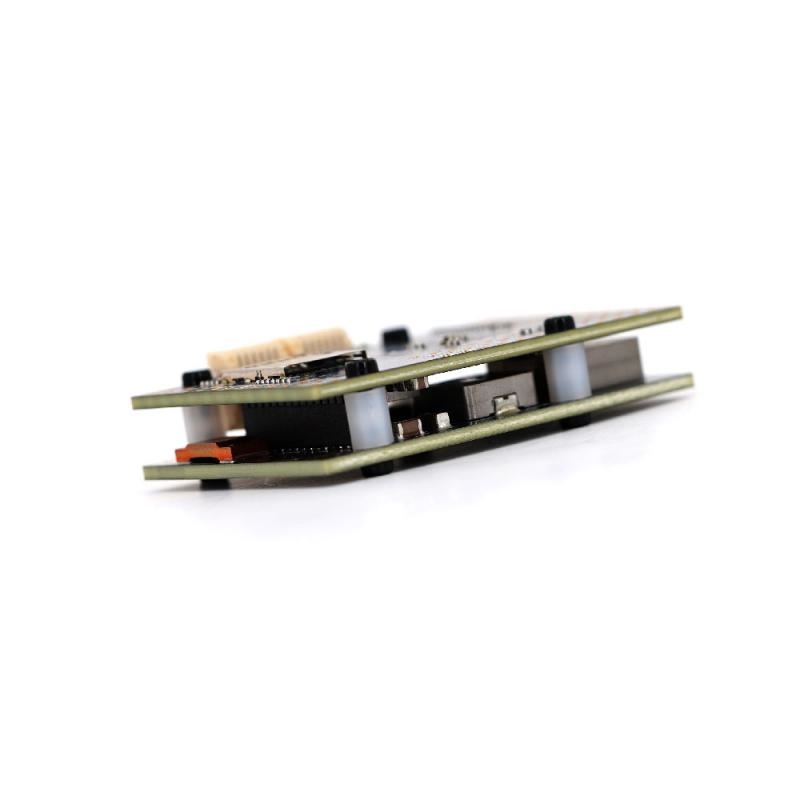

• 1x TBS Lucid H7 Wing FC & PDB (sandwiched boards)
• 1x USB(Type-C) / buzzer extender board
• 1x 10cm JST-SH-6P to JST-SH-6P cable for USB Extender
• 1x 25cm JST-SH-6P to JST-SH-6P cable foror HD Systems
• 2x 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C port
• 1x 330uF 63V electrolytic capacitor
• 2.54 pin headers x 120 (unsoldered!)
