Tekko32 4in1 60A ESC

88 $

10 in stock (can be backordered)

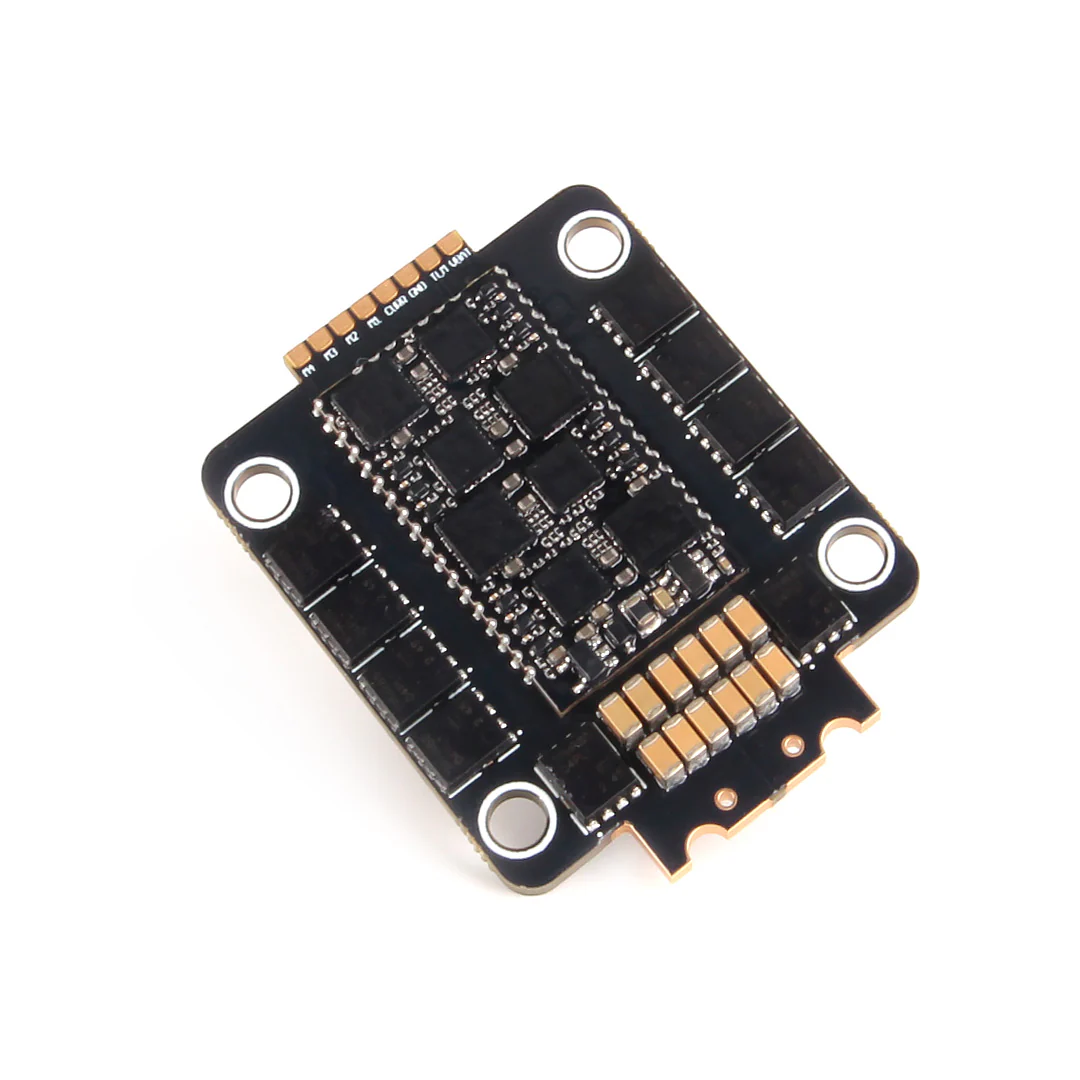

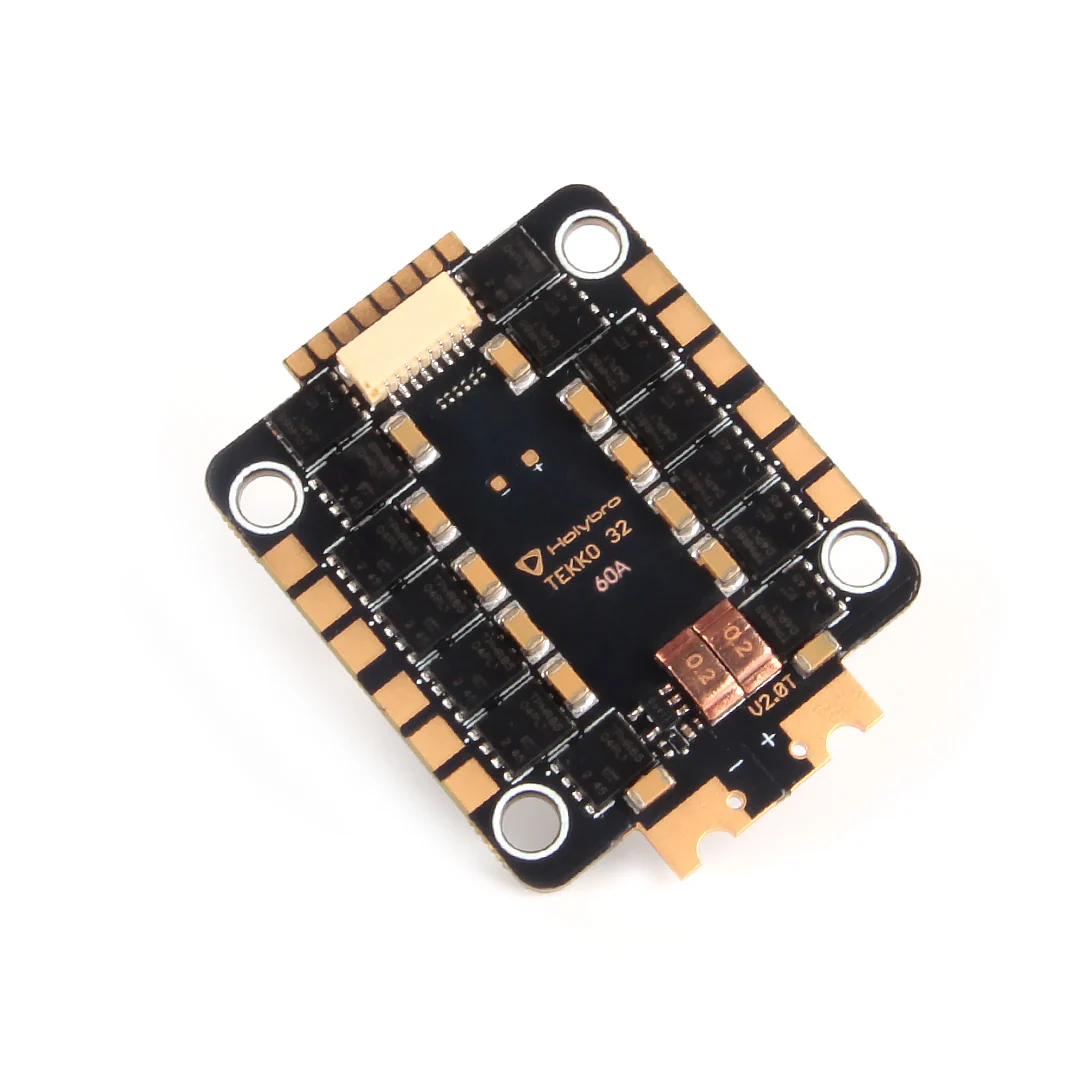

Tekko32 4in1 60A ESC

88 $

10 in stock (can be backordered)

DESCRIPTION

Description:

The Tekko32 F4 4in1 60A ESC is a high-performance electronic speed controller. This compact 4-in-1 ESC is designed with a 30×30 mounting pattern and supports 3-6S LiPo batteries. It has all new High-quality MOSFETs with low internal resistance and low heat generation, ensuring efficient power delivery and a smooth flight experience while allowing the ESC to boast a continuous current of 60A. It has a separate drive and control circuit to broaden the current capability of the drive circuit while reducing electrical interference in the control circuit. With its cutting-edge BLHeli_32 firmware and 96K PWM frequency, enjoy lightning-fast response times and exceptional motor control.

Features:

  • All new High-quality MOSFETs with low internal resistance and low heat generation
  • Fast F4 MCU @150MHz (compared to F3 @108MHz & F0 @48MHz)
  • A separate drive and control circuit, reducing the electrical interference
  • Continuous Current Rating of 60 Amps

Specification:

  • Continuous Current: 60A x4
  • Burst Current: 70A x4
  • Battery Supports: 4-6S
  • PWM Frequency: 16k to 96k
  • Supports DShot 150/300/600/1200/2400
  • Supports MultiShot/OneShot/Proshot/PWM etc.
  • ESC telemetry Supported
  • Onboard analog current sensor
  • BLHeli_32 firmware
  • 1000uf 35v capacitor included (highly recommended for 6s setup)
  • Amperage meter scale ratio: 120

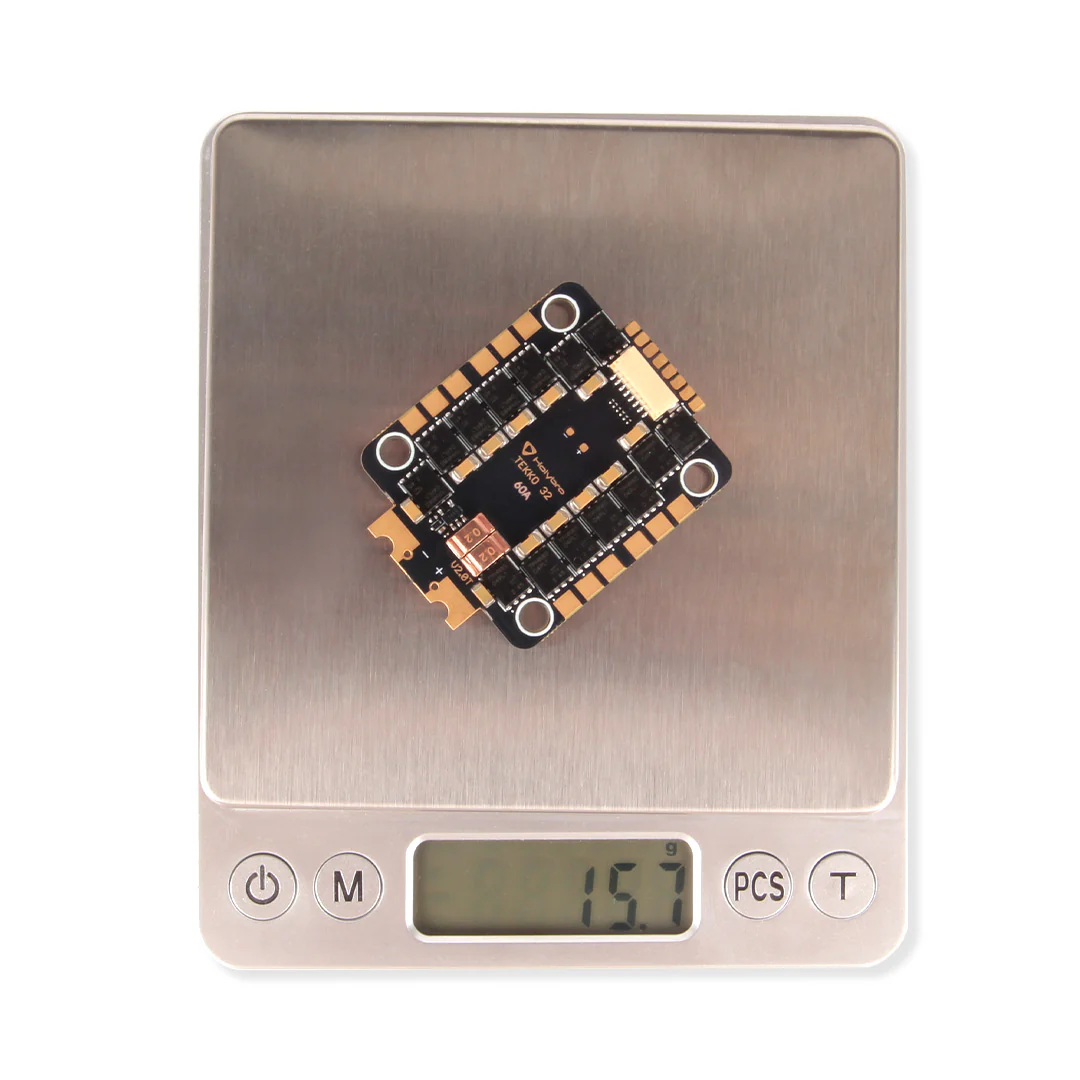

  • Dimensions: 48x37x6mm / Weight: 15.7g
  • Mounting holes: M4 30.5×30.5mm (M3 grommets included)

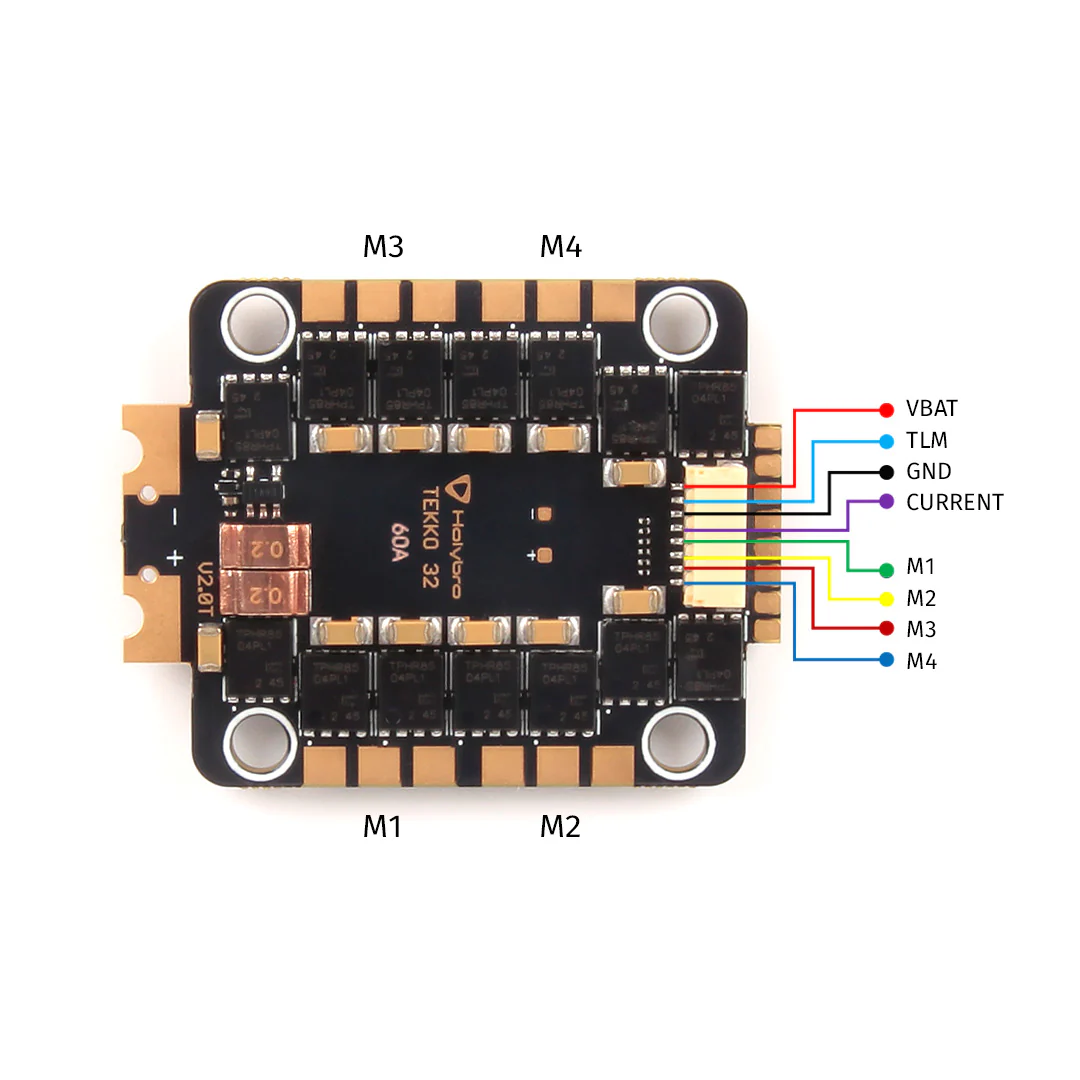

PIN MAP

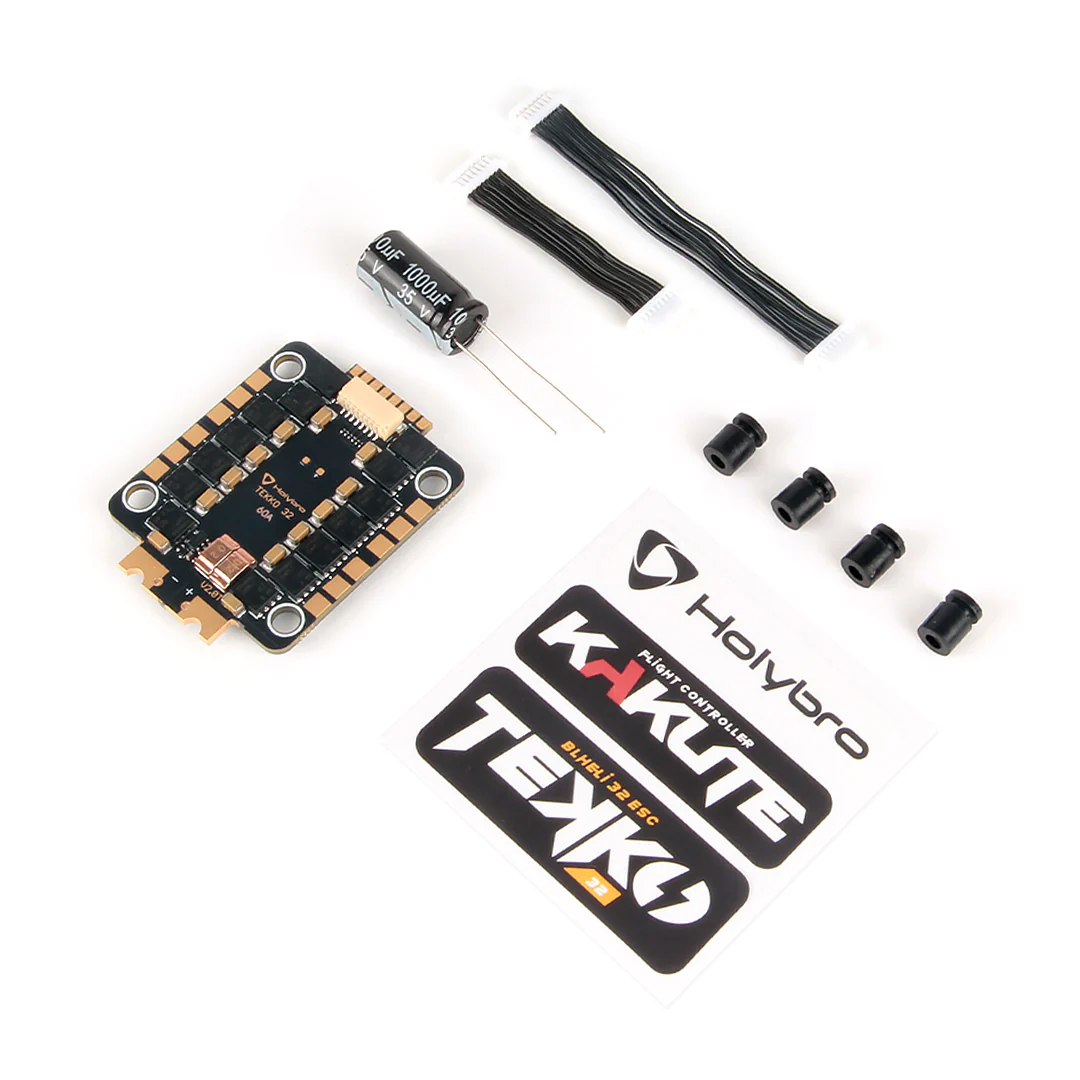

Package includes:

1x  Tekko32 F4 4in1 60A ESC
4x  M3 Anti-Vibration Silicone Grommet Insert
1x  Electrolytic capacitor: 1000uF 35v
1x  8pin to 8pin 1mm pitch 65mm cable
1x  8pin to 8pin 1mm pitch 25mm cable
