UP100AC DUO
124 $
Available on backorder
- SKU - 1028
UP100AC DUO
124 $
- SKU - 1028
Available on backorder
DESCRIPTION
Top of Form

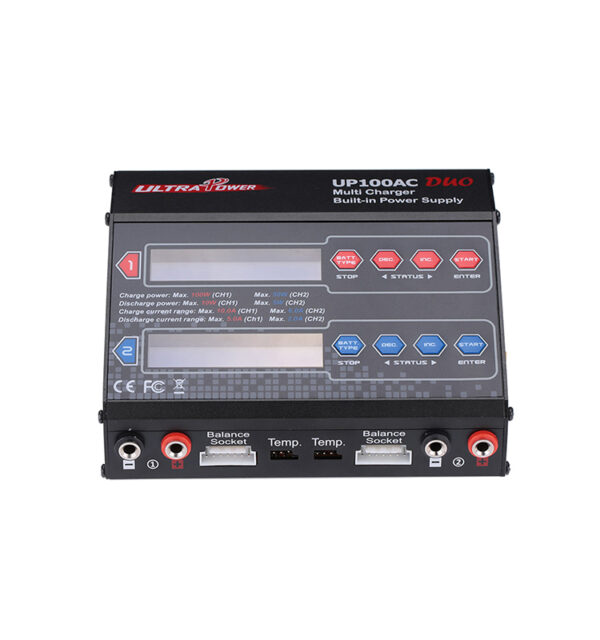

UP100AC DUO 100W 2X50W Dual Output Charger
Bottom of Form
Ultra Power UP100AC DUO 100W, 2X 50W AC DC Dual LiPo LiIon LiHV NiMH PB Battery Balance Charger
UP100AC Duo is a compact balance charger for LiPO/LiHV/LiFe/LiIo/NiMH/NiCd/Pb batteries, which can charge 2pcs batteies simultaneously. The total power is Max.100W, and it support power distribution, Max.100(CH1), Max.50W(CH2), you can choose 100W(CH1)+0W(CH2), 70W(CH1)+30W(CH2), 50W(CH1)+50W(CH2) etc. . In addtion, it have a DC output, 5V/2.1A, you can charge your mobile phone or tablet via a USB cable, very convenient for user.
Product Specification
| Product name | UP100AC DUO 100W Dual LiPo Battery Balance Charger |
| Input voltage | AC 100-240V/DC 11.0-18.0V |
| Charge power | Max. 100W (CH1) Max. 50W (CH2) CH1+CH2=100W (Support Power Distribution) |
| Discharge power | Max. 10W (CH1) Max. 5W (CH2) |
| Charge current range | Max. 10.0A (CH1) Max. 6.0A (CH2) |
| Discharge current range | Max. 5.0A (CH1) Max. 2.0A (CH2) |
| LiIo/LiPo/LiFe/LiHv cell count | 1-6 cells |
| NiCd/NiMH battery cell count | 1-15cells |
| Pb battery voltage | 2V-20V (1-10cells) |
| Current drain for balancing LiPo | 300mA/cell |
| Net weight | 0.72kg |
| Dimensions | 143X115x63mm |
Features
1) Terminal voltage control in 4.18V to 4.30V
2) Delta-peak sensitivity (NiMH/NiCd)
3) Individual cell balancing charge & discharge
4) Battery meter function
5) Touch one button to reserve factory setting
6) Data storage (6 profiles in memory)
7) USB Ports for PC Control & Firmware Upgrade
