Designed for Specter and other Cinelifter Drones, the custom-made Xing2 Motor delivers robust power and precision performance, redefining flight dynamics for FPV enthusiasts. Featuring new center-slotted N52H curved arc magnets, it drastically reduces response time to address the critical bottleneck of traditional motors, minimizing delays in braking and acceleration for faster PID loop translation.

Due to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower the reluctance and the higher the magnetic flux (which is the magnetic analog of current), causing more efficiency and higher power!

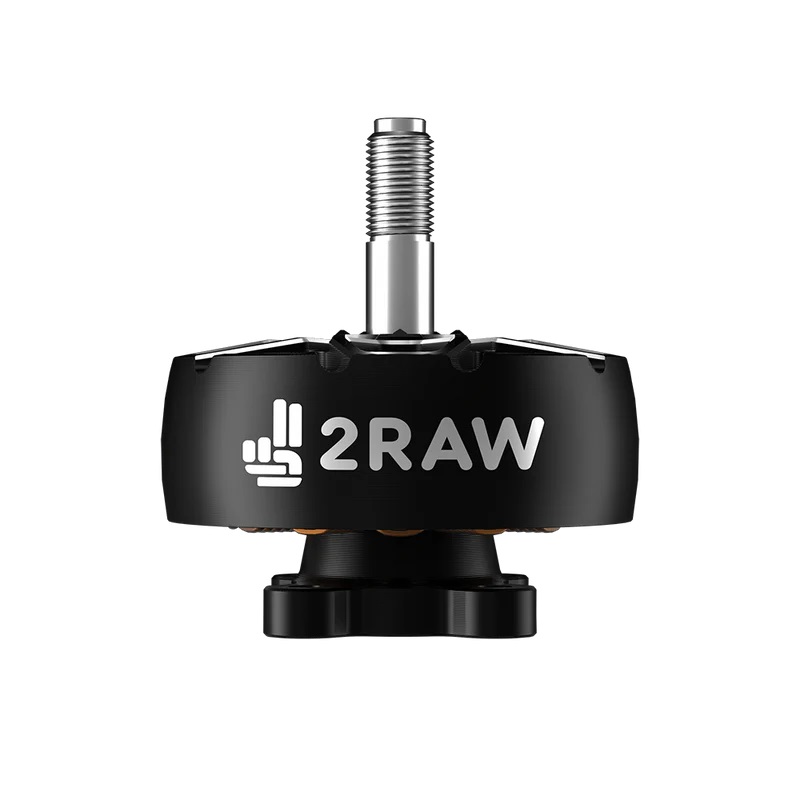

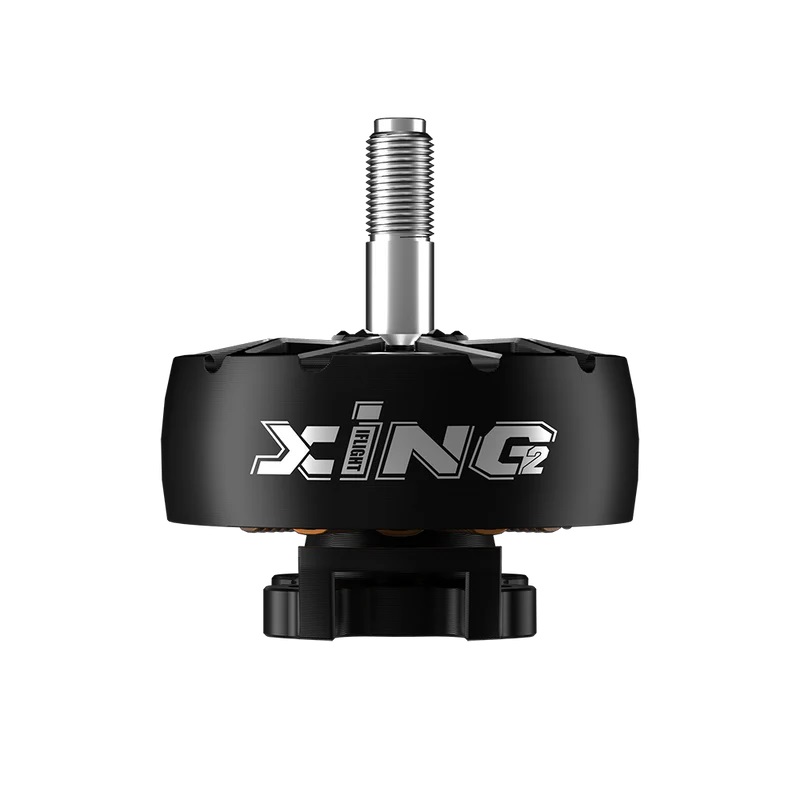

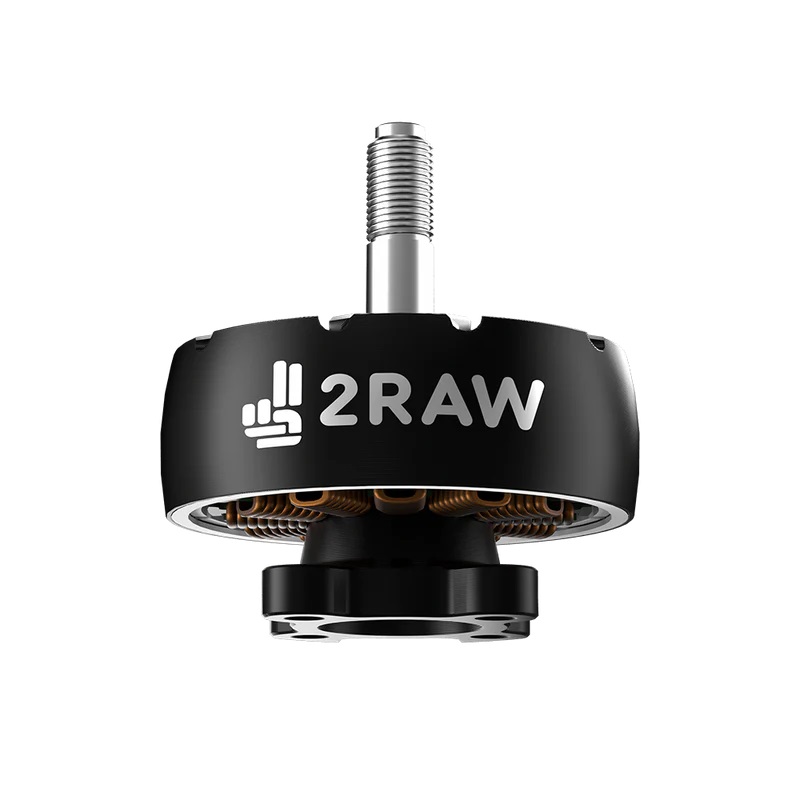

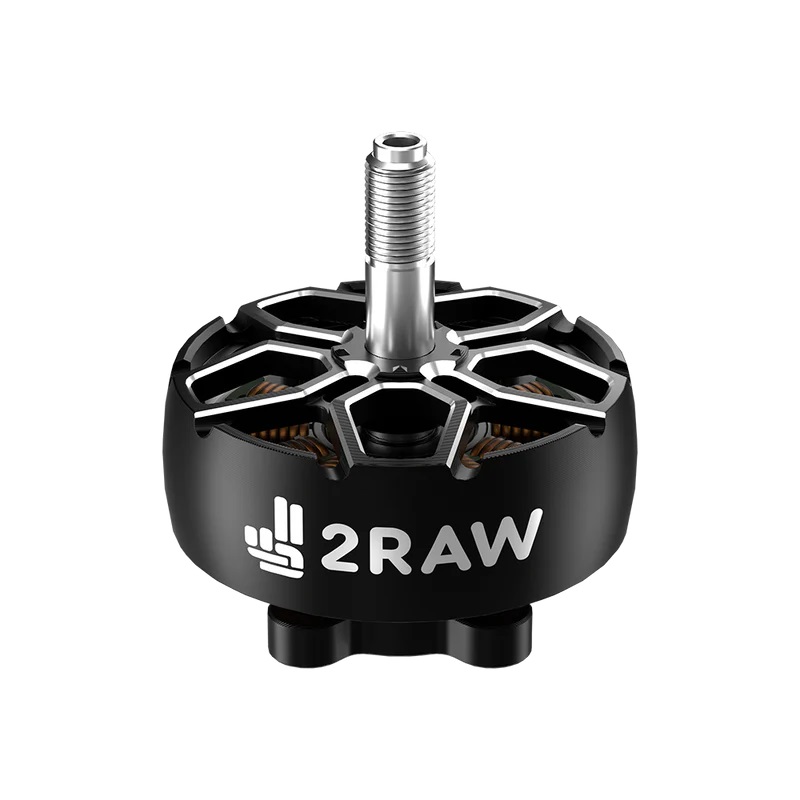

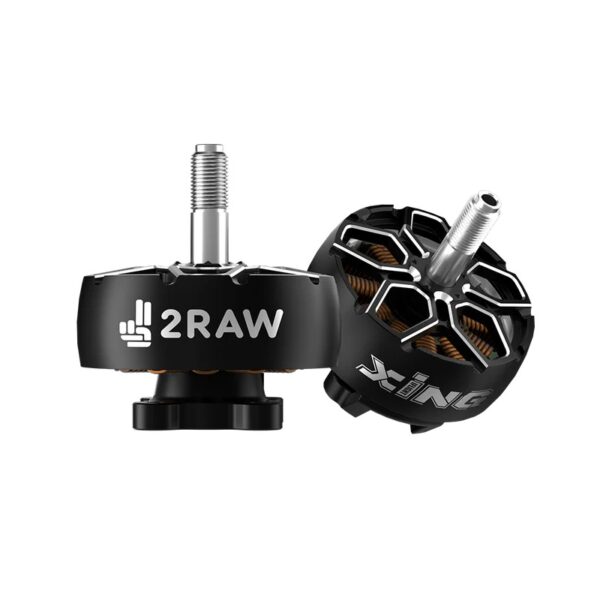

Xing2 2806.5

KV: 1400KV

Weight(included wire): 54g

Dimension: φ35*37.3mm

Interphase Resistance: 63.4mΩ

Input Volts: 25.2V

Peak Current: 55.54A

Max Watt: 1367.54W

Mounting Holes: 19*19 φ3mm

Rotor Specifications: Unibell

Shaft Diameter: 5mm

Shaft Protruding Length: 15.5mm

Lead: 260mm/18AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Type: NSK/NMB

Bearing Specification: φ11*φ5*5

Winding: Single Strand copper winding

1 x XING2 2806.5 motor

1 x M5 Screw nut

4 x M3*6 screws
