DESCRIPTION
The iFlight BOB57 is a long-range HD drone that was designed in collaboration with pilot & videographer Ellis van Jason. The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights.
Hybrid motor design optimized for that can be used with both bi-blade and tri-blade 6″ propellers
Solid antenna mount for less ocillations when using long antennas
H-shaped frame with robust middle section for less props in view
Gladiator shell protects from dust and water droplets
Front-mounting XT-60
Compatible with DJI O3 Air Unit and Vista

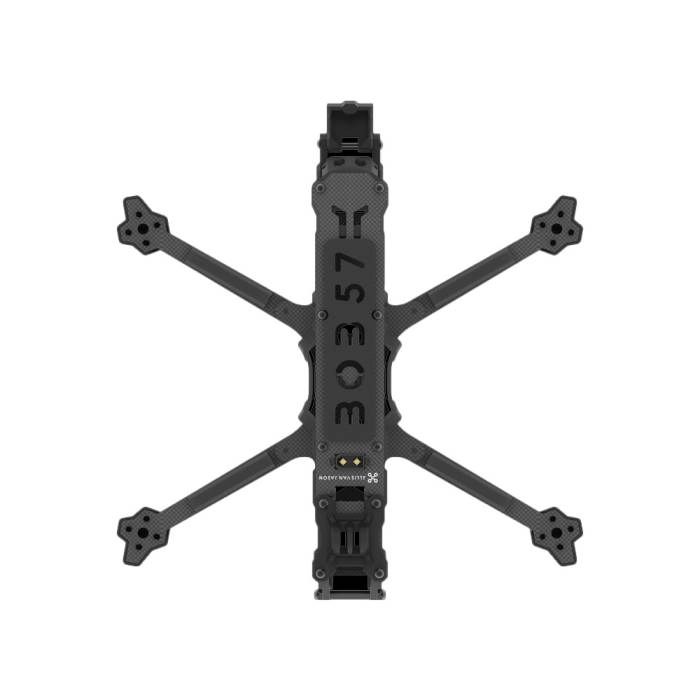

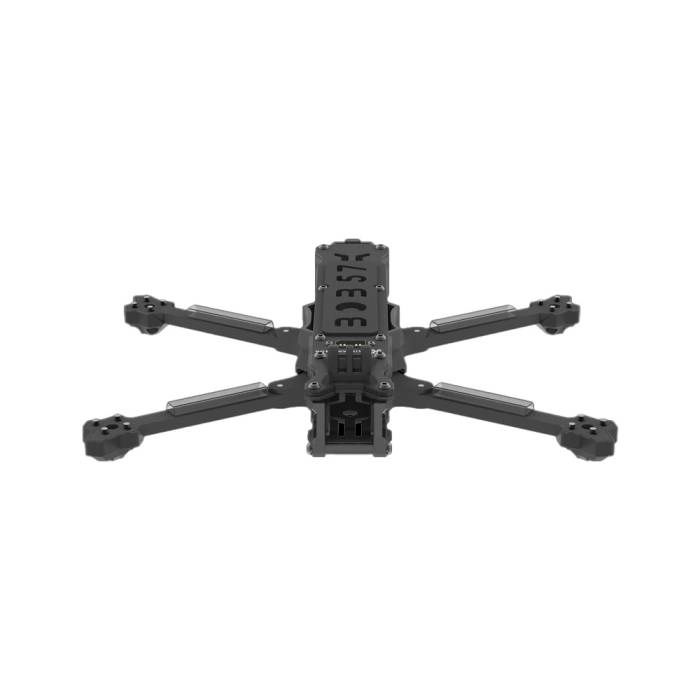

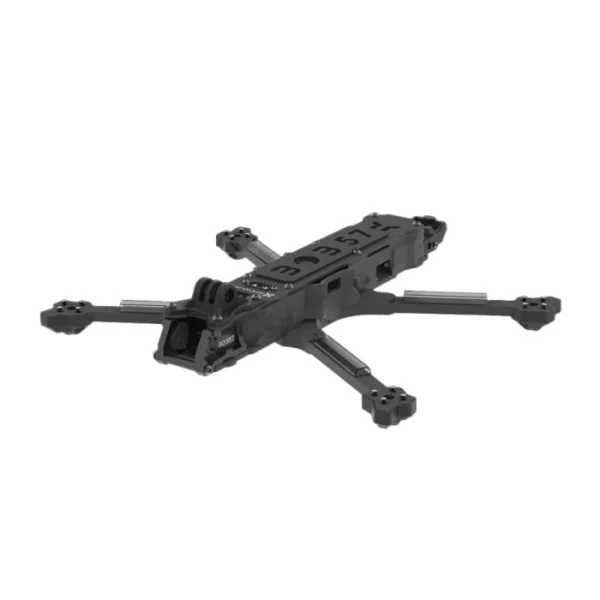

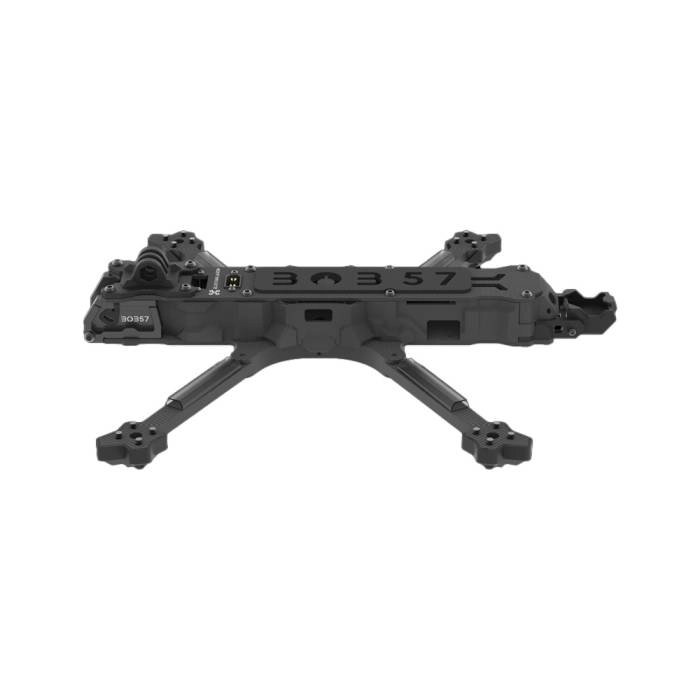

Product Name:BOB57 O3 Frame Kit
Frame wheelbase: 278mm
Frame Dimension: L165*W225*H34 mm
Frame Body Dimension: 34mm
Arm Thickness: 6mm
Bottom Plate Thickness: 1.5mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 2.5mm
Motor Mounting: 16x16mm
VTX Mounting: 25.5*25.5/Φ1.6mm, 20*20/Φ2mm
1 x BOB57 O3 Frame Kit
1 x BOB57 TPU Parts
2 x 215mm MIPI Video Cable for DJI O3 Air Unit
4 x Motor Wire Shield Tube
1 x Battery Anti-Slip Pad
2 x Battery Strap
1 x Screw Bag
IPEX to SMA Adapter Cables and Anti Spark Filter are not included!
In this frame kit, dual antenna VTX TPU is included, it needs to be used with 2pcs IPEX to SMA adapter Cables and 2pcs antenna
If you only need to install one antenna, please buy “O3 Single DJI Antenna TPU” in the options
