DJI FPV Air Unit
190 $
Out of stock
- SKU - 1002

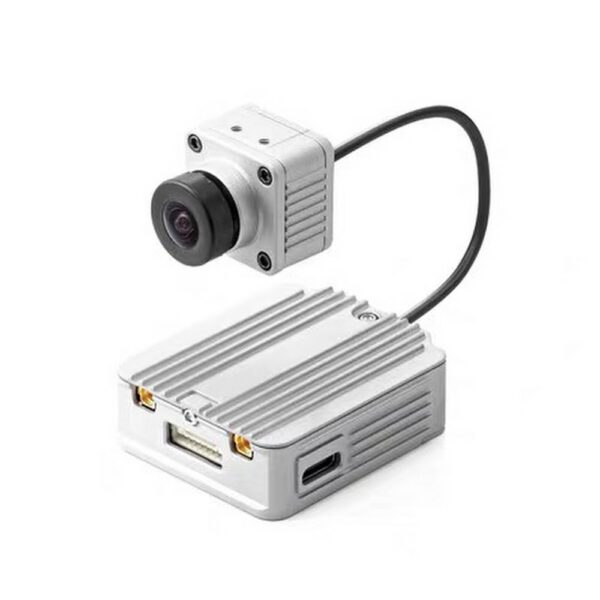

DJI FPV Air Unit
190 $
- SKU - 1002
Out of stock
DESCRIPTION
DJI FPV Air Unit 1080p/60fps HD Recording 5.8Ghz 8CH FPV Digital Transmitter Camera Combo 28ms/4km for FPV Racing Drone RC Airplane
Overview
The FPV Air Unit features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.
Tips
The air unit may become hot during or after operation.
DO NOT touch the air unit before it cools down.
DO NOT use the air unit for an extended period when there is no external cooling equipment. Otherwise, the air unit may overheat and enter overheat protection mode.
Keep the antennas of the air unit at least 40 mm apart.
Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.
FEATURES
8 Channels, 8 Drones
The DJI HDL FPV Transmission system and the DJI FPV Air Unit are equipped with eight frequency channels, which allow up to eight drones to fly simultaneously. Each operator has an exclusive channel. This helps to reduce cross-interference and provide an optimal racing experience.
1080p Aerial Footage
The DJI FPV Air Unit records videos at 1080p/60fps during flight, providing pilots with smooth and clear aerial footage.
Embedded Remote Controller Receiver
Users can wirelessly connect their DJI FPV Air Unit to the DJI FPV Remote Controller without having to purchase additional receivers. This reduces flight preparation time significantly.
Multi-Antenna Technology
The DJI FPV Air Unit has two antennas, both of which are receivers and transmitters, ensuring broader signal coverage for reliable image transmission.
DESCRIPTION
Weight : Air Unit (Camera included): 45.8 g / 3.9 g (MMCX elbow each)
Dimensions
Air Unit: 44 x 37.8 x 14.4 mm
Camera: 27.4 x 21.1 x 20.1 mm
Coaxial Cable: 100 mm
SPECIFICATION
Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm
Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms
Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9 W
Sensor: 1/3.2” CMOS; Effective Pixels: 4 M
Lens: 2.1 mm, f/2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150°(D); 122°(H); 93°(V)
Dimension: 22.1 x 21.1 x 20.1 mm
Weight: 8.2 g
CHANNELS
Channels Info :8CH
FCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839
CE/SRRC
Channel 1: 5735
Channel 2: 5770
Channel 3: 5805
Channel 8: 5839
MIC
Channel 1: 5660
Channel 2: 5700
Channel 8: 5745
Compatibility
DJI FPV Goggles
DJI FPV Remote Controller
PACKAGE INCLUDED
1 x DJI FPV Air Unit (with camera and four M2 screws)
1 x Three-in-one cable
2 x Antenna (MMCX elbow)
