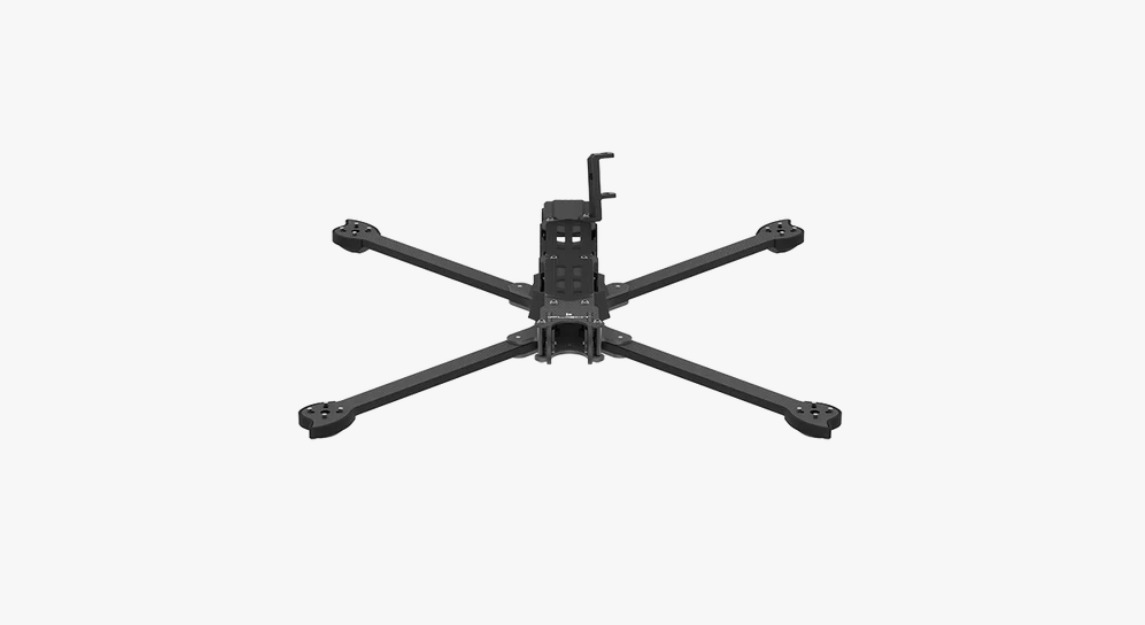

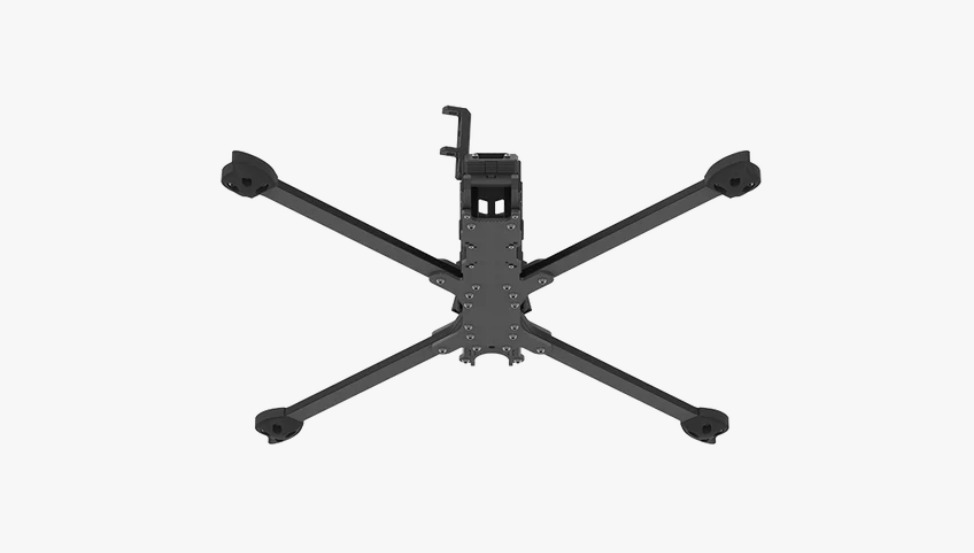

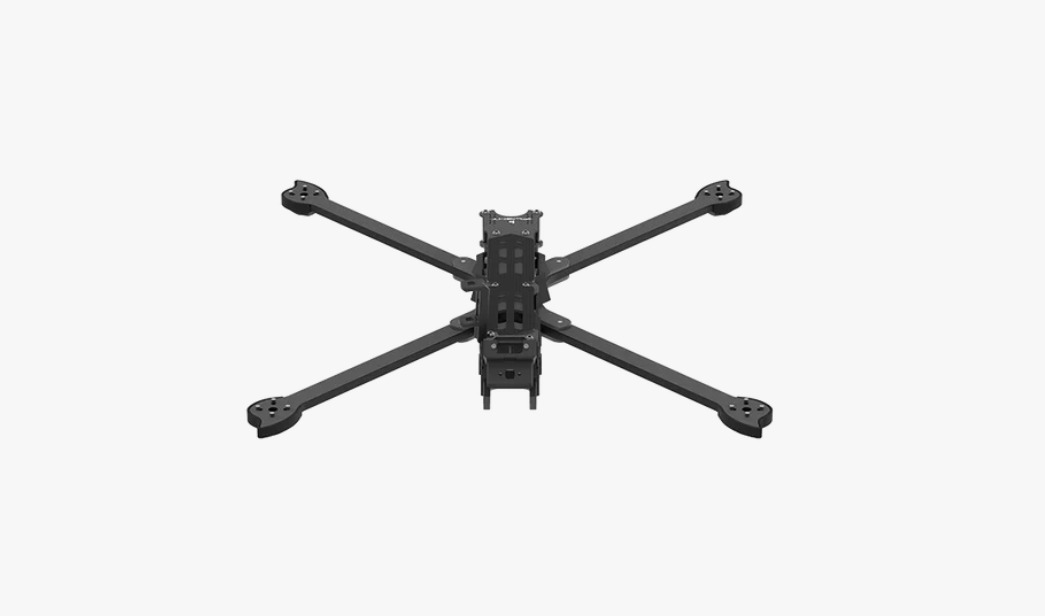

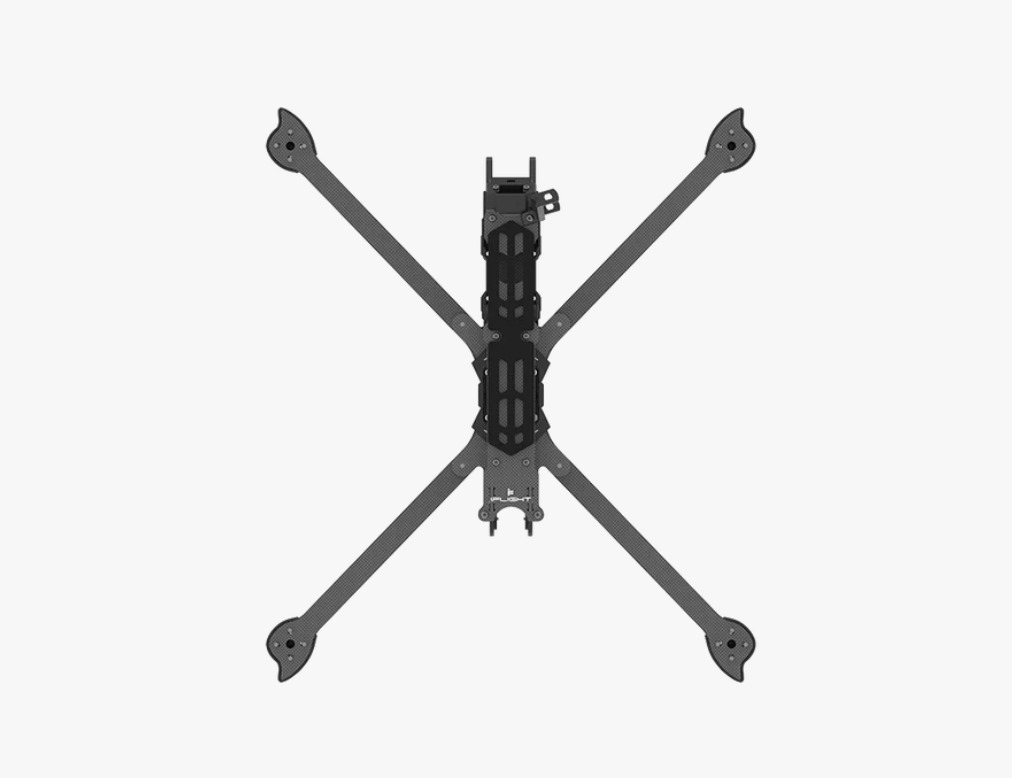

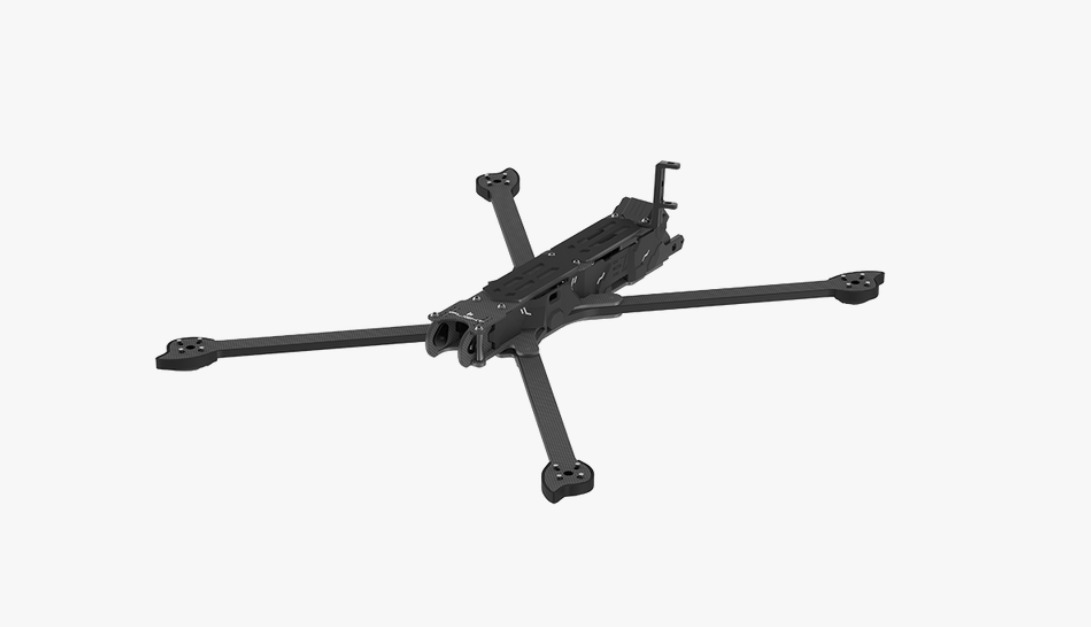

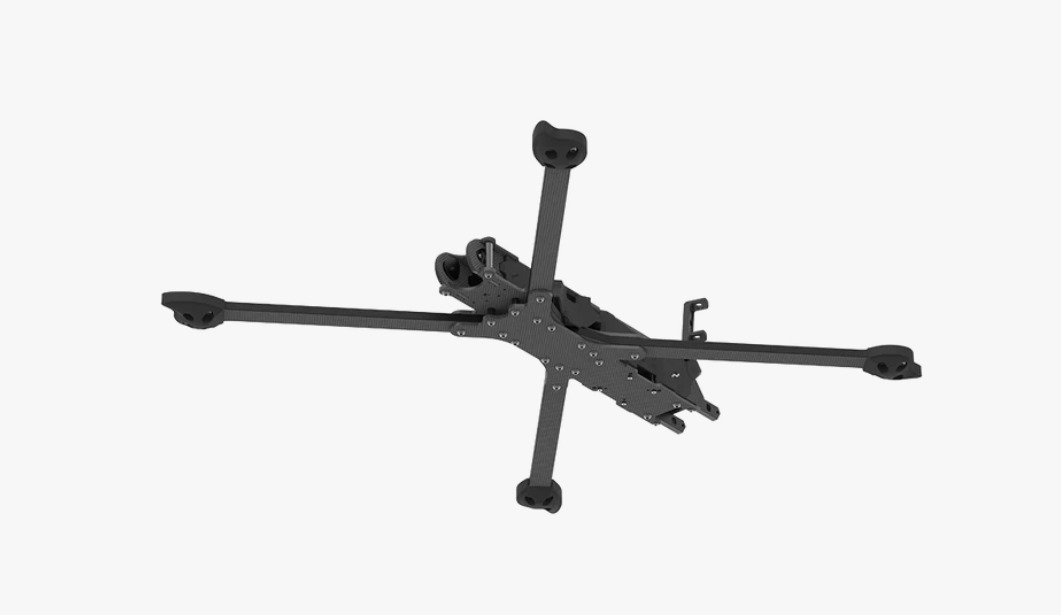

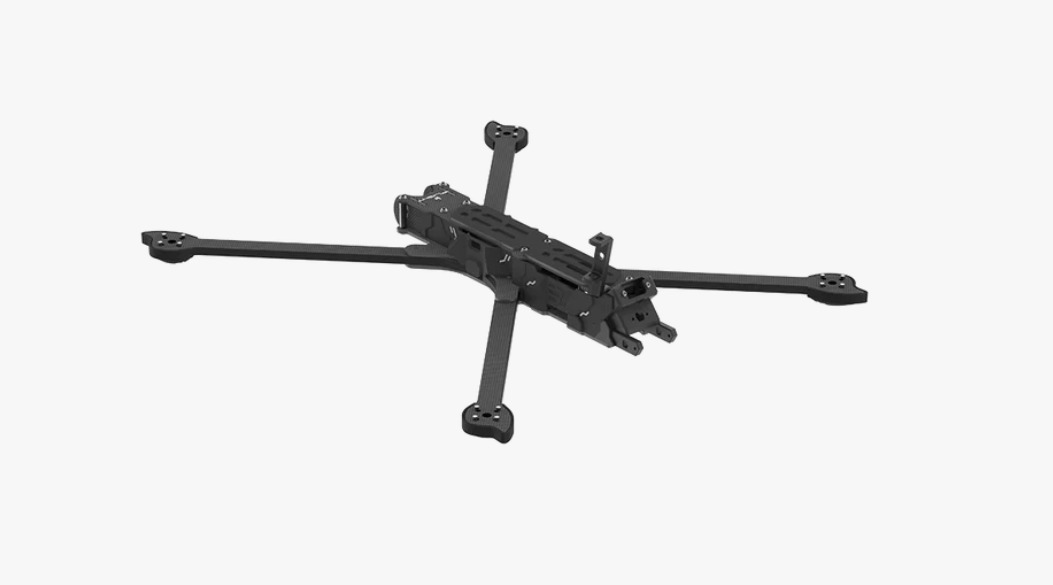

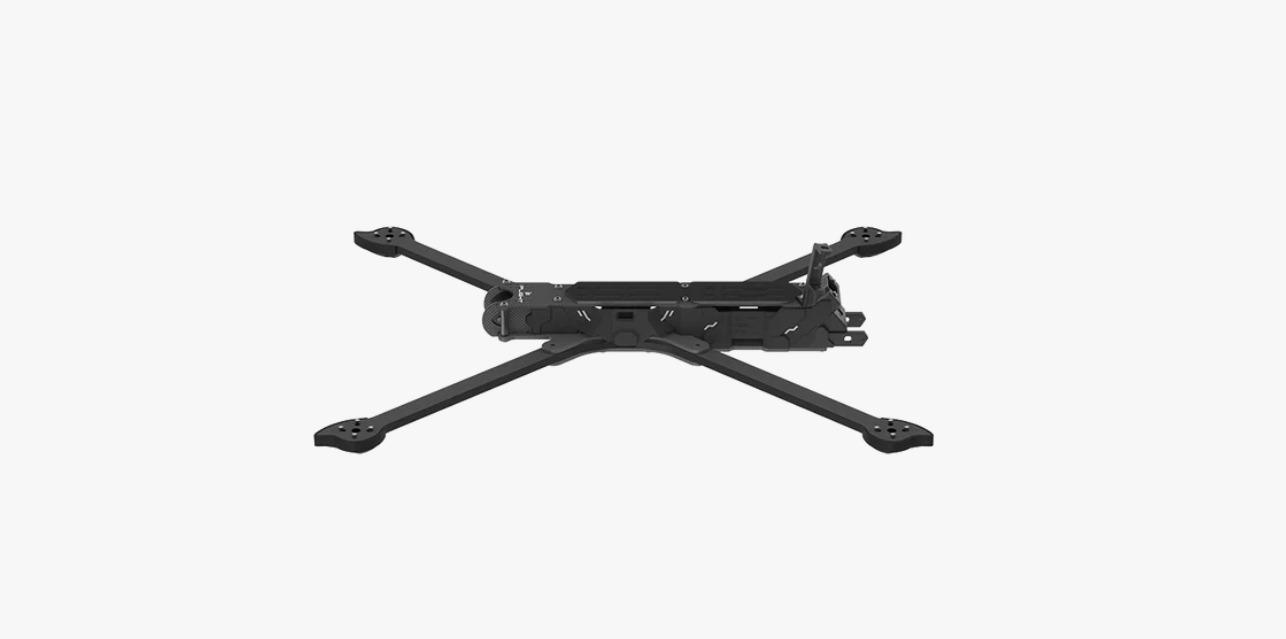

iFlight is proud to announce the release of the CX10 ECO Frame. The CX10 is a 10″ size quadcopter, fit for Analog and the DJI O3 Air Unit system.

Product Name: CX10 ECO 10 inch Frame Kit

Wheelbase: 452mm

Frame Dimension: L338*W299*H34mm

Arm Thickness: 6mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Max Flight Stack Height: 21mm

Max VTX Height: 30mm

Flight Stack Mounting: 30.5*30.5mm φ3mm

VTX Mounting：20*20 Φ2mm/ 25.5*25.5 Φ1.6mm/ 30.5*30.5 Φ3mm

Motor Mounting：16x16mm/19x19mm Φ3mm

Weight: 383g

Compatibility: DJI O3 Air Unit/Caddx Vista/BLITZ Whoop 1.6W/5.8W VTX

1 x CX10 ECO Frame

1 x Screw Bag

1 x TPU Set

1 x Battery Pad

2 x Battery straps

4 x AMASS MR30 Plugs

The vertical antenna mount will be in the box when shipped and needs to be installed by the customer.

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
