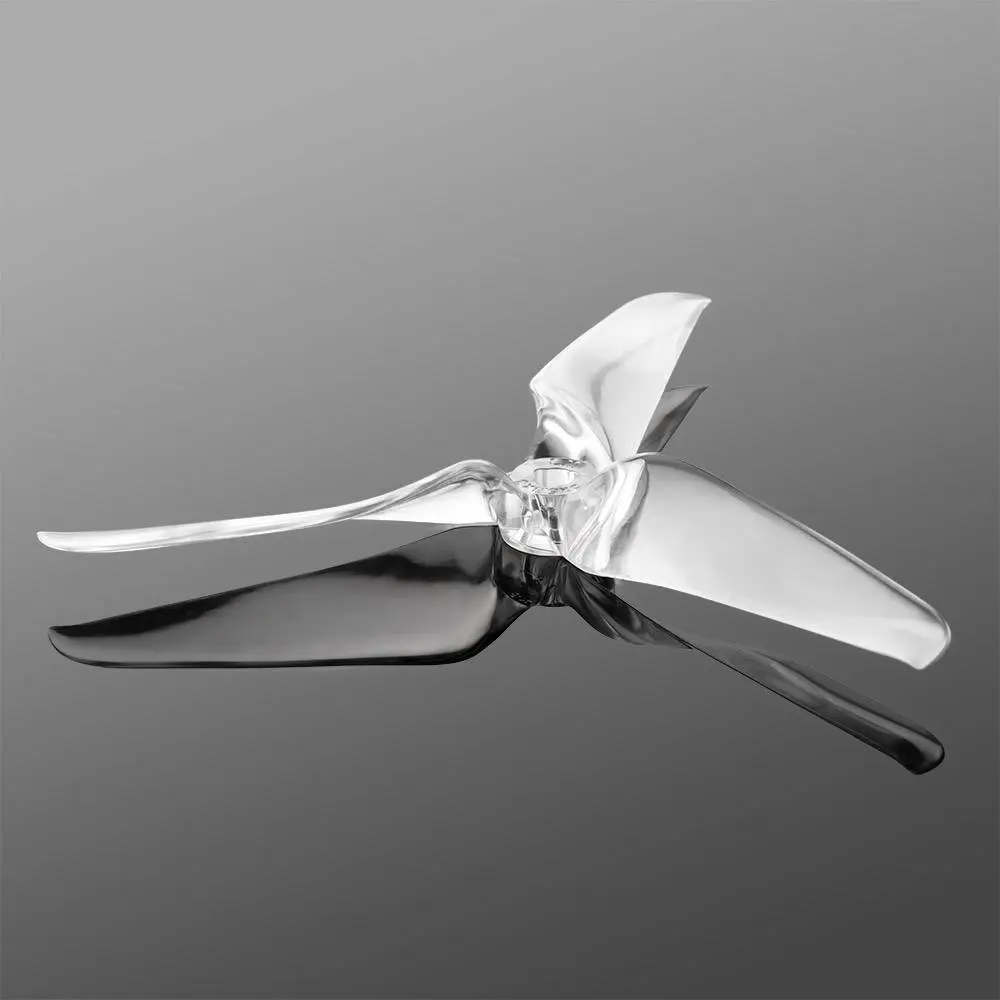

The Lumenier 5×5.3×3 Gate Breaker propeller is designed for high speed, durability, extreme performance and POPO compatible. This unique and aggressive airfoil provides incredible thrust throughout the entire power-band, resulting in a “locked in” feel while flying with quick throttle response and acceleration. In addition to incredible power potential, the Gate Breaker also has great efficiency. Most high performance propellers suffer from high amp draw to achieve top-end thrust, but the Gate Breaker advanced airfoil allows for both high performance and good efficiency.

The Gate Breaker uses airfoils that provide high coefficients of lift at extremely high angles of attack, without any stall characteristics. This trait allows for an extremely high pitch, fast, and aggressive propeller that is efficient even at static thrust conditions where other high pitch propellers suffer.

The Gate Breaker propellers are made from a new ultra-durable, crash resistant polycarbonate material. This allows the propellers to resist breaking in a crash or prop strike. Now you can clip a gate or a tree branch and keep flying! Each blade is 100% balanced direct from the mold as well, giving you smooth and precise flight characteristics.

FPV Drone Racing and Freestyle flying require high-quality propellers that ensure optimal thrust, efficiency and top-end speed to allow pilots to consistently perform at their best. Lumenier prop design starts from the ground up, considering flight speed, blade RPM and other factors to optimize each profile. Leveraging a proprietary algorithm, each prop has a unique airfoil and blade design, rather than using the same blade and duplicating them on double, triple or quad-bladed props. This leads to subtle, yet important, performance improvements that can mean the difference between a win or a DNF on race day.

“The Gate Breaker props are durable, have great responsiveness, and superb control at high throttle. They are one of the most well rounded props I’ve ever flown!”

Includes

• 4x 5×5.3 3-Blade Gate Breaker Propellers, 2x CW and 2x CCW

Videos

Design. From the ground up.

During the design of any Lumenier propeller, key elements are considered such as blade RPM, motor size and KV, and overall flight envelope. These inputs create operating points such as Reynolds Numbers, Mach, Beta Angles, etc. which are used to guide the design process.

Performance based on Science.

Given the operating points and design goals Lumenier produces unique airfoils leveraging a proprietary genetic algorithm that iterates 10s of thousands of possible airfoils and compares them to each other and also a library of well known existing airfoils. This creates the best possible and most suitable combination of airfoils as well as overall blade design. For this reason, no 2 blades on any Lumenier propeller are the same.

Airfoil design with a purpose.

Calculus and proprietary algorithms help translate 2D coefficients of lift, drag, and moment into 3D coefficients that account for high blade loading and near static thrust conditions that a multi-copter will encounter during flight.
