Lumenier Razor LED F4 55A 2-6S AM32 4-in-1 ESC – 30×30

80 $

Out of stock

DESCRIPTION

About this product

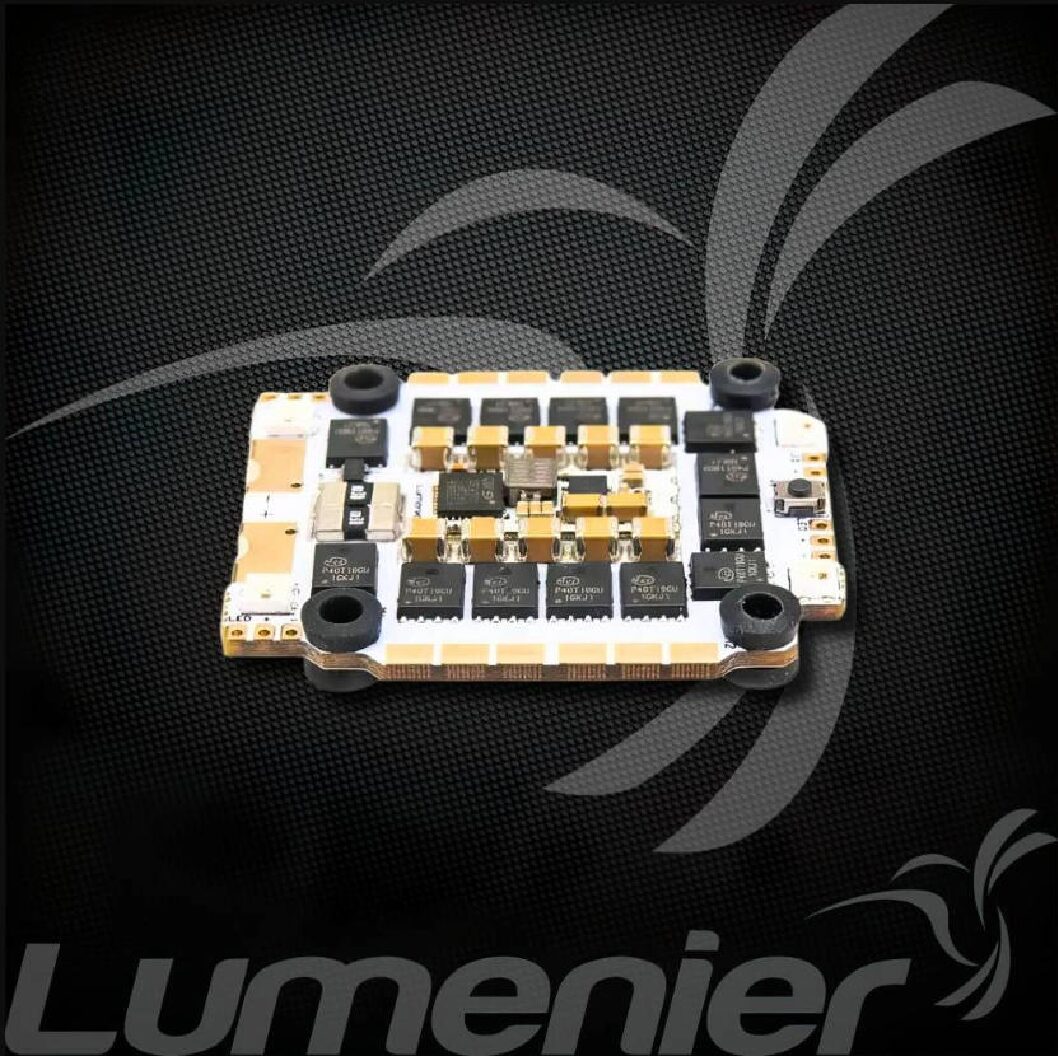

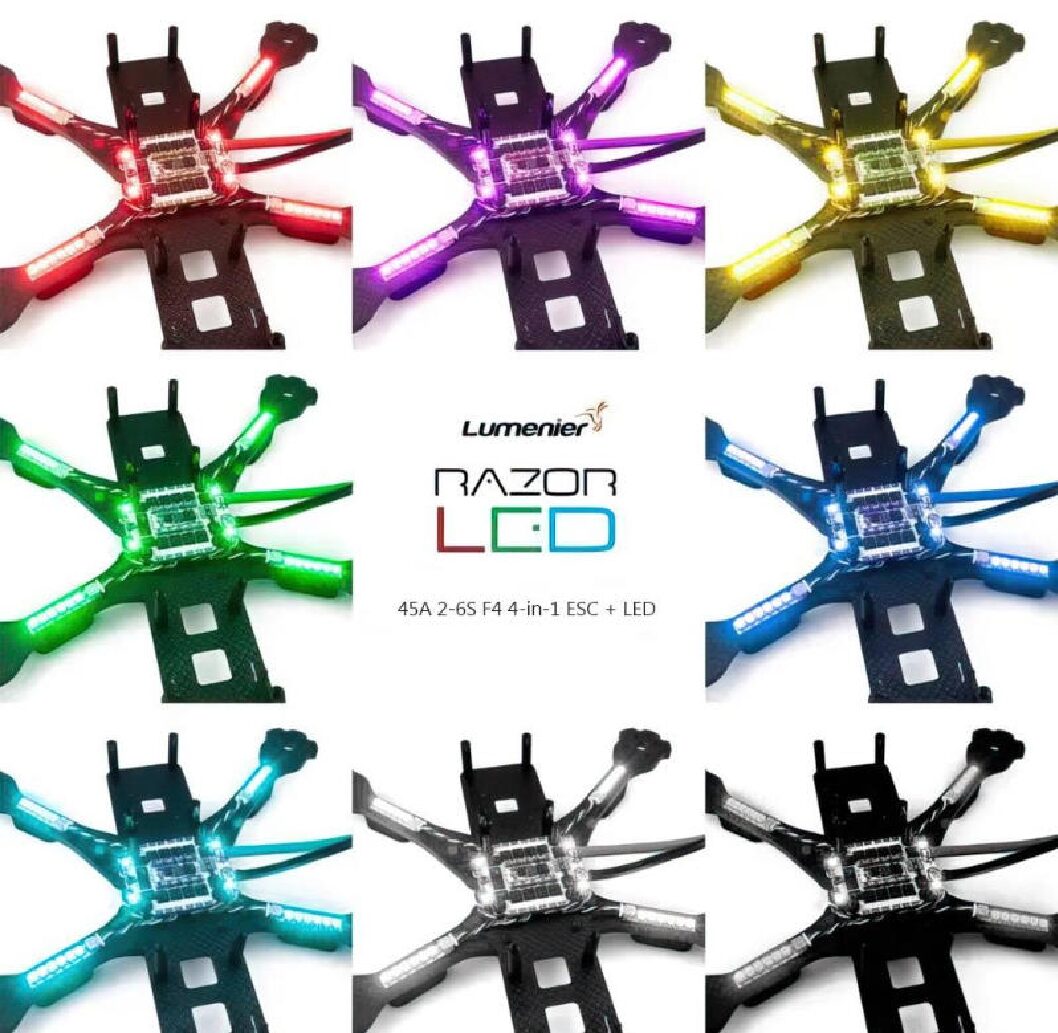

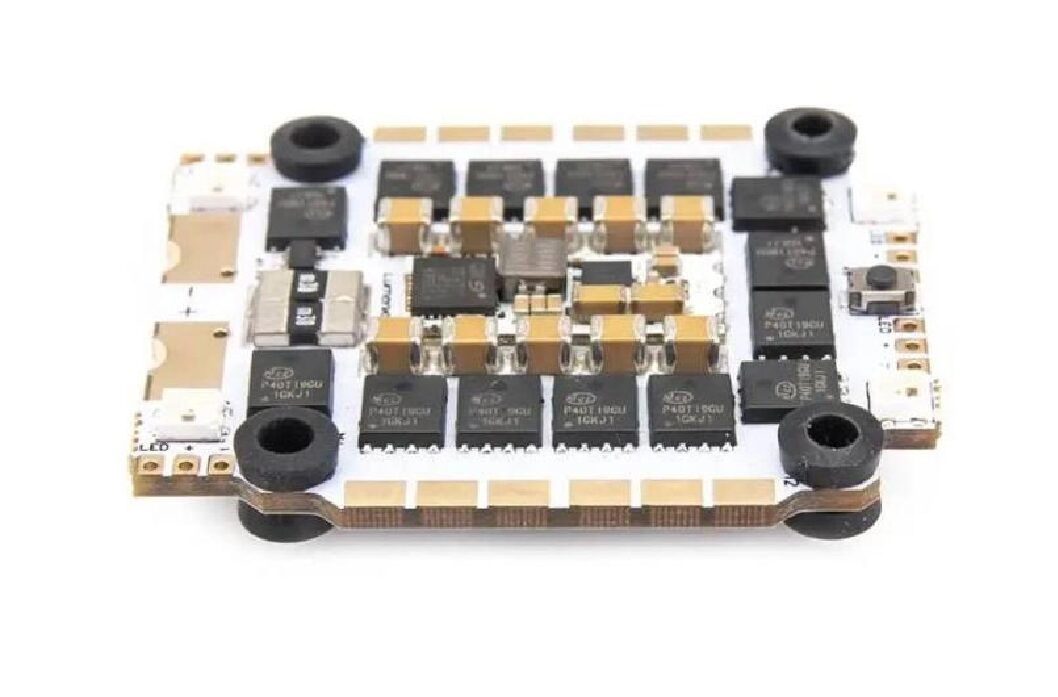

Theย Lumenier Razor LED ESCย is a high-performance 32-bit ESC with powerful F4 processors and AM32 firmware, delivering faster input signals, lower latency, and live telemetry for advanced flight controllers. It features 4x onboard RGB LEDs with a pre-programmed controller. Press the button to cycle through 13 color options and patterns. The ESC also acts as a distribution board for four additional LED strips, all synced to the onboard controller. The built-in 5V regulator powers the LEDs, making setup easyโ€”just press a button to change colors!

Note: LED arms sold seperately.

Features

  • DSHOT 1200, Proshot, Oneshot125, Oneshot42, and Multishot Support
  • Powerful Regenerative and Active Braking
  • Synchronous Rectification Technology
  • 2-6S LiPo Battery Compatibility
  • Built-in 5V Regulator
  • Onboard RGB LEDs
  • AM32 Firmware
  • Adaptive Timing
  • F4 MCU

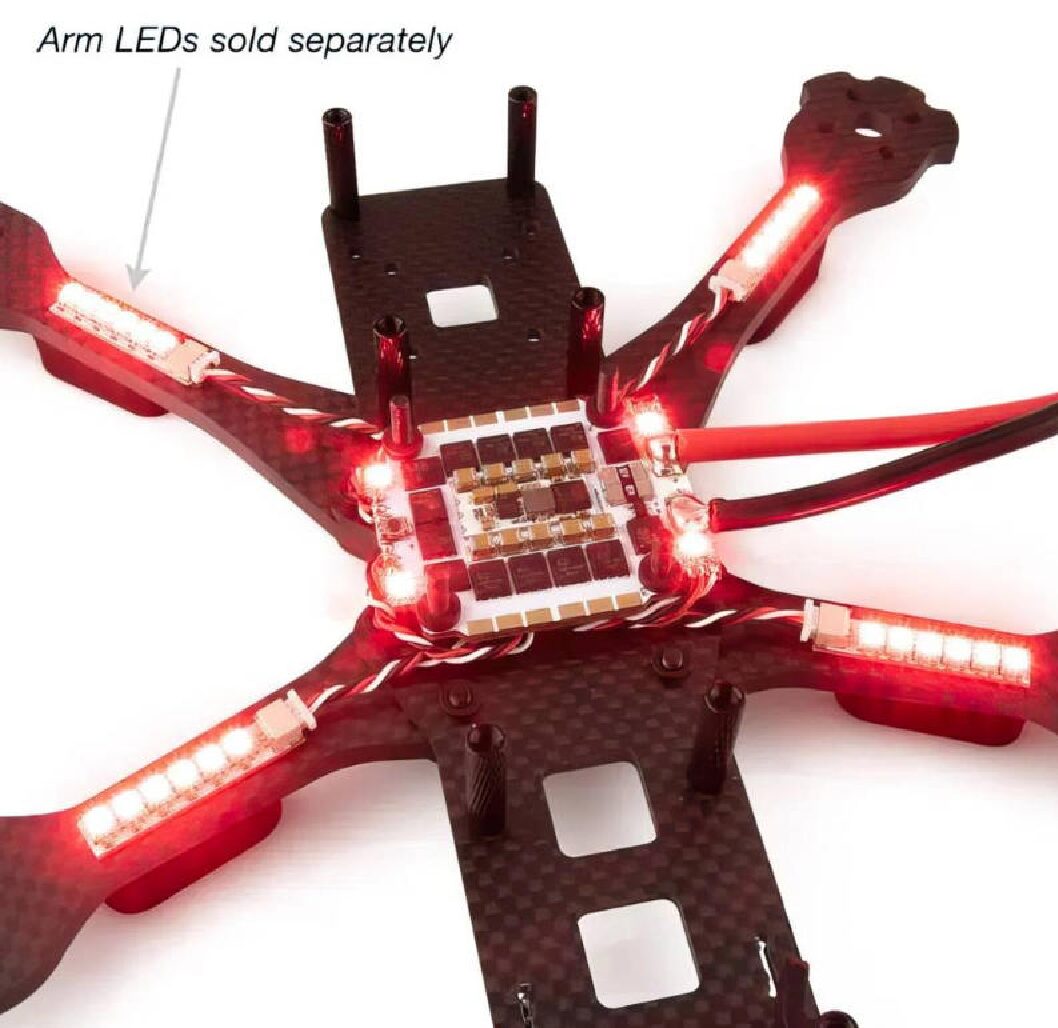

UPGRADE YOUR LUMENIER RAZOR LED ESC WITH ADDITIONAL RGB ARM LEDS

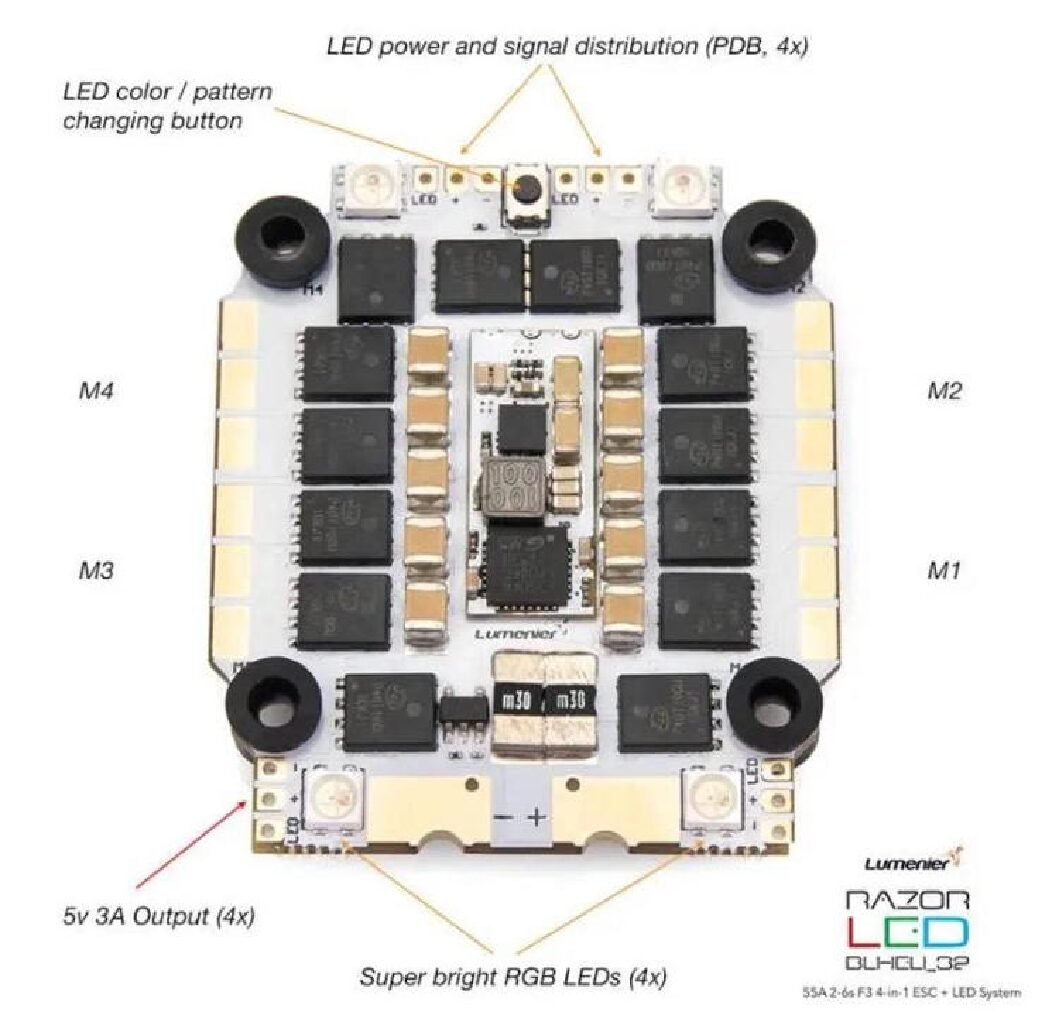

The Lumenier Razor LED ESC is compatible with other RGB addressable LEDs, allowing you to add up to 4 more LED strips to your quad! The ESC has a built-in 5V regulator that powers additional LEDs and automatically sends the signal for the color/pattern at the push of a button.

Specifications

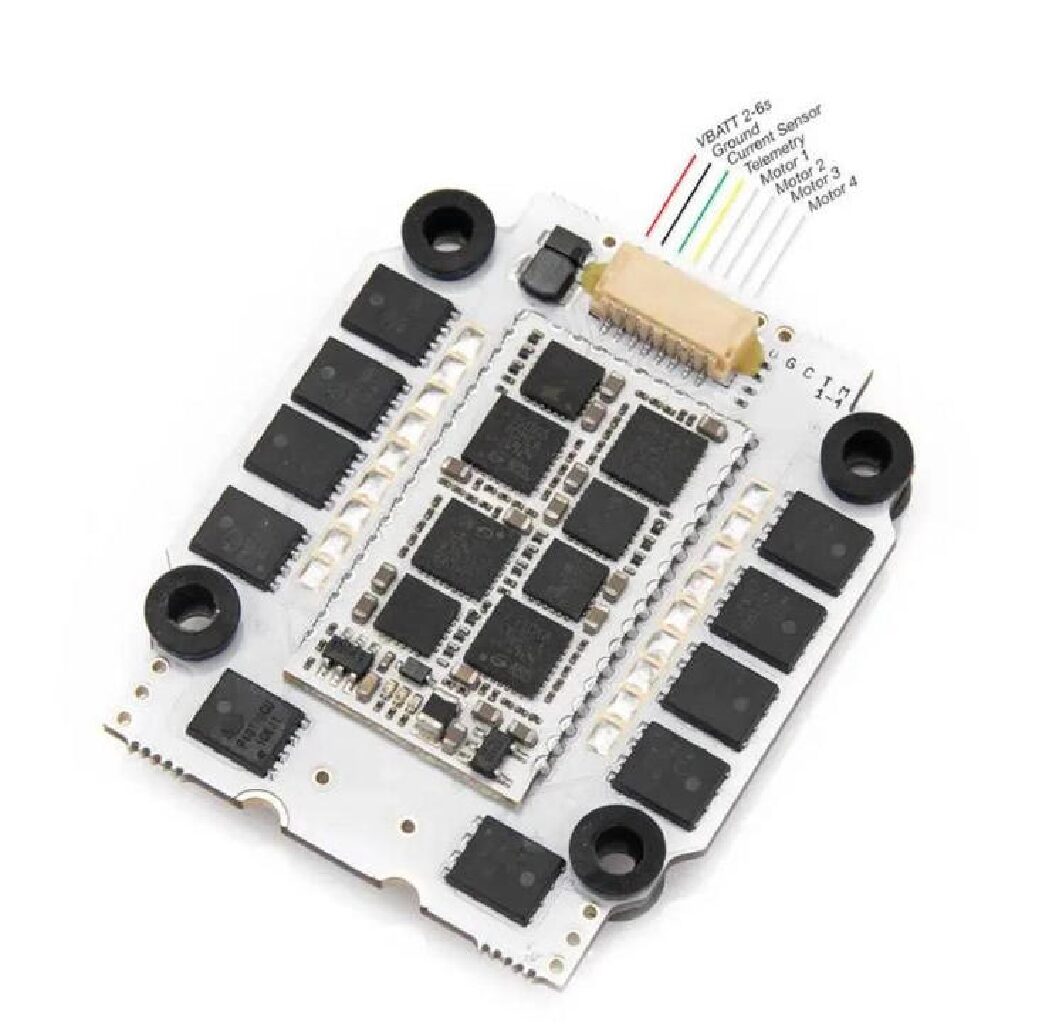

  • 8-Pin Connector Pinout: VBAT, Ground, Current ADC, TLM, Motor 1, Motor 2, Motor 3, Motor 4
  • Mounting Holes: 30.5×30.5 mm (M4, M3 with rubber inserts)
  • Constant Current: 55 Amps
  • Dimensions: 39x45x5 mm
  • Signal Wire Length: 7 cm
  • Burst Current: 55 Amps
  • Input: 2-6S LiPoly
  • Weight: 15g

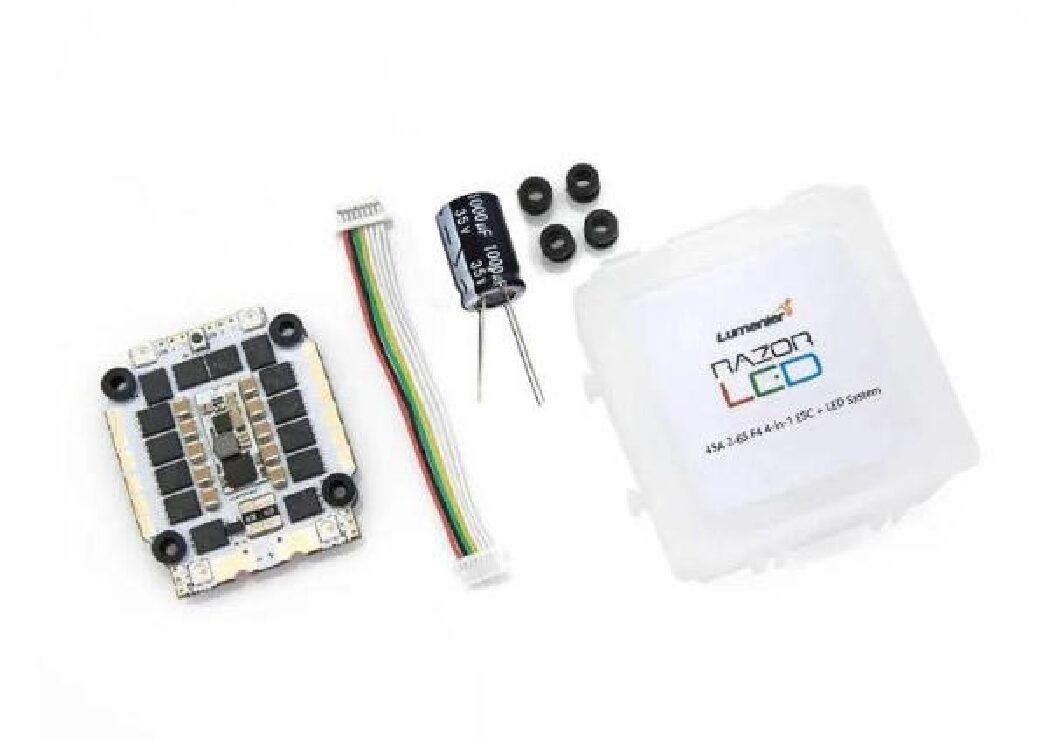

Includes

  • 1x Lumenier Razor LED F4 55A 2-6S AM32 4-in-1 ESC – 30×30
  • 1x 8-Pin Micro JST-SH 7cm connector
  • 1x 1000uf 35V Capacitor
  • 1x Hardware Set
