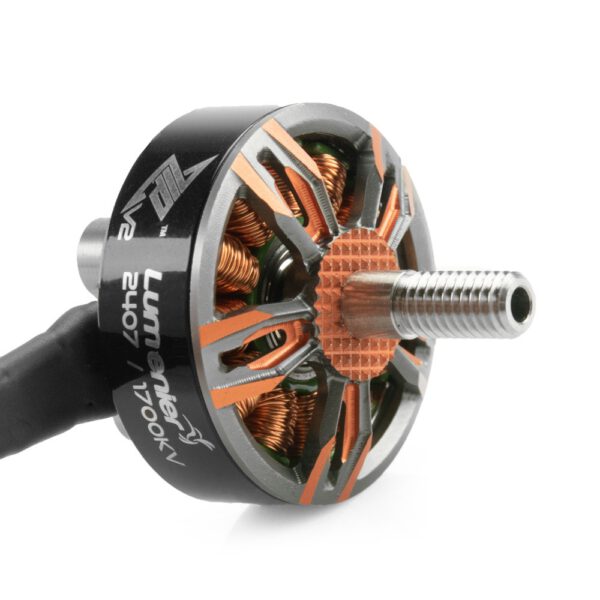

Lumenier ZIP V2 2407 Motor – 1700/2550KV
The Lumenier ZIP motor line continues to grow with the addition of the ZIP V2 2407 Motor. With two different KV options to choose from, you’ll have a ZIP to match every setup.
V2 features an updated dual-color bell, premium titanium alloy shaft, and light-weight design.
30 $
- SKU - 1173
Lumenier ZIP V2 2407 Motor – 1700/2550KV
The Lumenier ZIP motor line continues to grow with the addition of the ZIP V2 2407 Motor. With two different KV options to choose from, you’ll have a ZIP to match every setup.
V2 features an updated dual-color bell, premium titanium alloy shaft, and light-weight design.
30 $
- SKU - 1173
DESCRIPTION
The Lumenier ZIP motor line continues to grow with the addition of the ZIP V2 2407 Motor. With two different KV options to choose from, you’ll have a ZIP to match every setup.
The ZIP series by Lumenier is the culmination of years of FPV drone motor manufacturing experience. The ZIP V2 motors feature top-of-the-line components and powerful N52SH curved magnets for maximum power and the highest temperature rating. This gives you the best-performing motor for your racing or freestyle drone. Lumenier has always been known for its silky smooth motors, and the ZIP motors are no exception. Each motor is dynamically balanced and tested at the factory to ensure a smooth and perfectly running motor out of the box, resulting in clear and jello-free flight footage.
The Titanium Alloy hollow shaft ZIP V2 motors allow drone pilots to use traditional propellers with M5 nuts. The shafts are made from high-quality and light-weight Titanium Alloy to ensure the best durability possible with threads that will not strip.
The motor features a Titanium Alloy shaft with screw termination for easy maintenance. The ZIP V2 2407 motors come in at a light weight 34g.
ZIP V2 Series
ZIP V2 motors feature premium components for top-of-the-line performance and extra reliability. Lumenier motors are guaranteed to give you the best so you can get the job done right.
New in V2
- Upgraded light-weight dual color bell design
- Ultra-lightweight Titanium alloy 1 piece shaft
- 2g lighter vs v1 with the same incredible performance
Specifications
- Stator Diameter: 24mm x 07mm (0.2mm Kawasaki silicon steel)
- Motor Wire Length: Lumenier 160mm / 18AWG
- Inner Shaft Diameter: 4mm / Titanium Alloy
- Bell and Base: Anodized Aluminum
- Bearing Size: Japanese NMB 9X4X4
- Base Mounting Pattern: 16x16mm M3
- Cells (LiPo): 3-8S (6S most common for 1700KV, 4s for 2550KV)
- Weight: 34g (with short wires)
- Motor Dimension: 32 x 29mm
- Motor Connection: Bare Wire
- Magnets: N52SH Curved
- Configuration: 12N14P
- POPO Compatible: No
- KV: 1700KV/2550KV
- Windings: 12N14P
- Stator Size: 2407
- Prop Shaft: 5mm
Includes
- 1xLumenier ZIP V2 2407 Cinematic Motor (1700KV or 2550KV Options)
- 1x Standard M5 locking Prop Nut
- 4x Mounting Screws (M3x6 Socket Cap)
- 4x Mounting Screws (M3x8 Socket Cap)
