Every upgrade of the Nazgul Evoque F5 V3 is engineered to elevate your flight experience to new heights, featuring six core enhancements that redefine versatility and performance for drone enthusiasts. At its core, the innovative switchable DC/X-frame design stands out as a game-changer—seamlessly adapting to every flight scenario you demand. Opt for the DC geometry when capturing stunning cinematic shots, ensuring zero propeller obstruction for crystal-clear footage, or switch to the agile X geometry to unlock dynamic, high-speed freestyle maneuvers, making it a versatile companion for both creative filming and adrenaline-fueled flights.

DC /X Dual Geometry Flexible Switching

The innovative switchable DC/X-frame design offers unparalleled versatility. Whether you prefer the DC geometry for cinematic shots with no prop in view, or switch to the agile X geometry for dynamic freestyle maneuvers, Nazgul Evoque F5 V3 adapts to all flight scenarios.

Upgraded Appearance Style Meets Performance

Innovative Fin-Shaped Cooling Channel significantly enhances heat dissipation. Even in hot weather, it quickly disperses heat to ensure stable flight performance.

Refined Injection-Molded Construction Upgraded Quality

Upgraded from TPU printed parts to full injection-molded components, delivering superior material integrity and refined tactile smoothness.

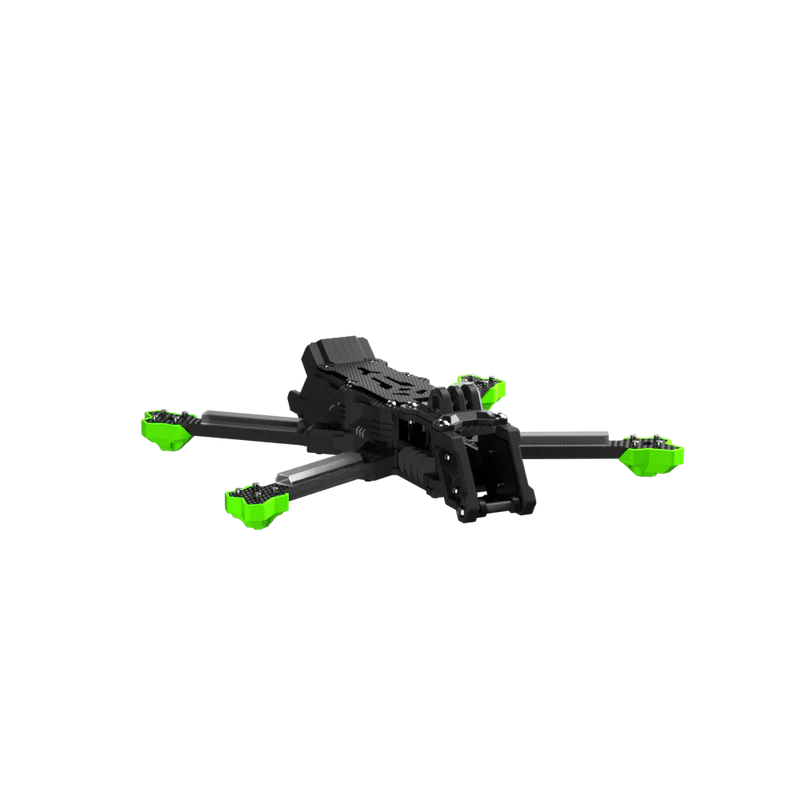

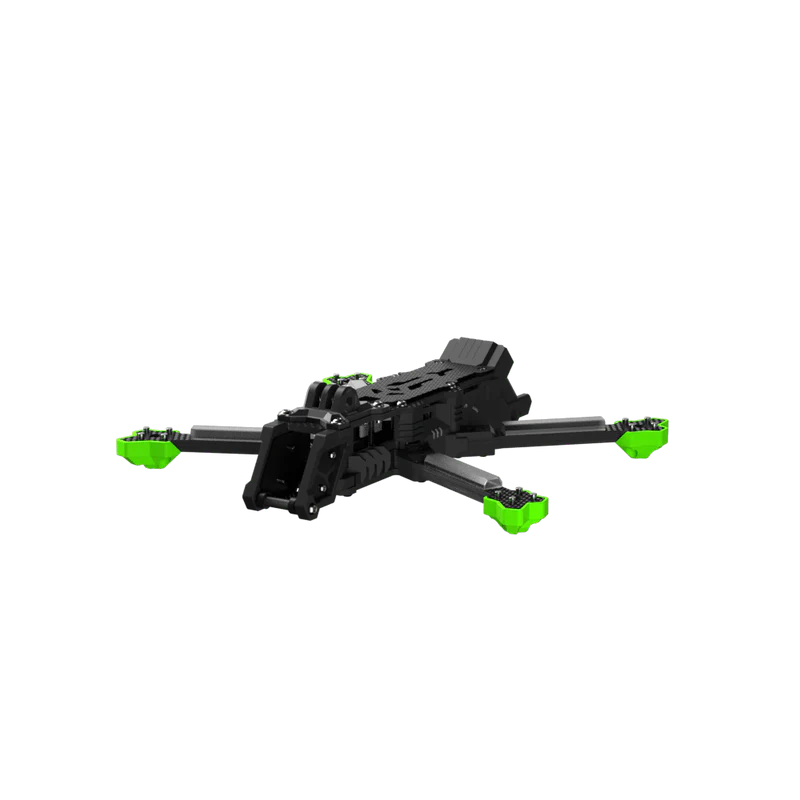

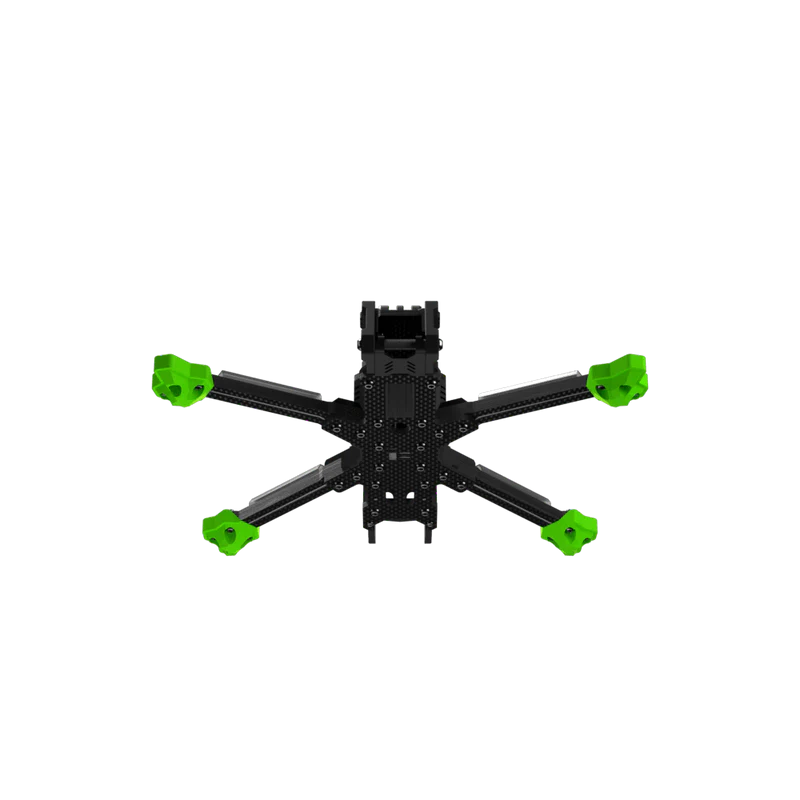

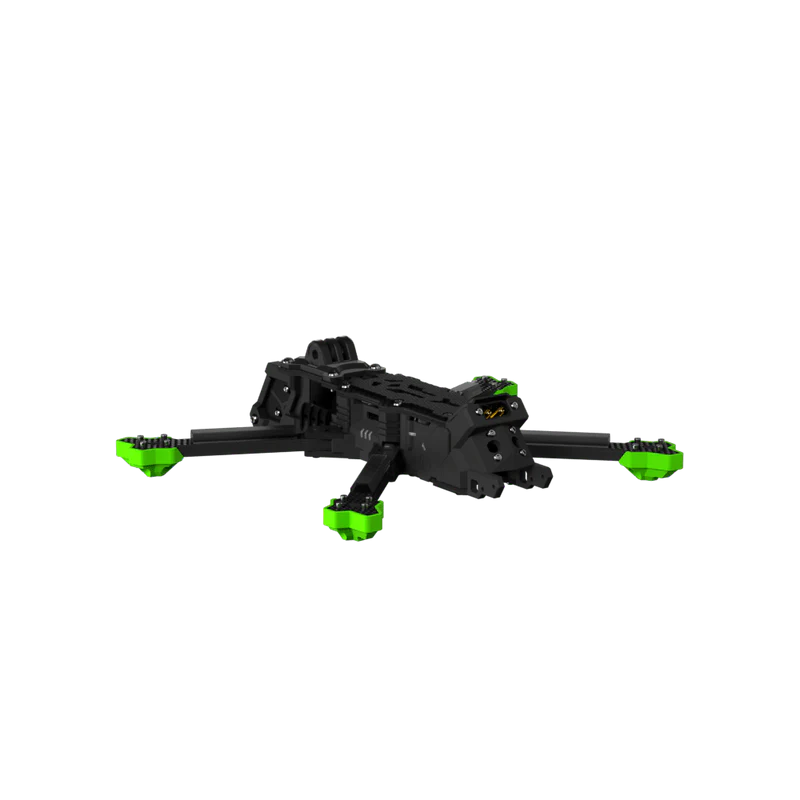

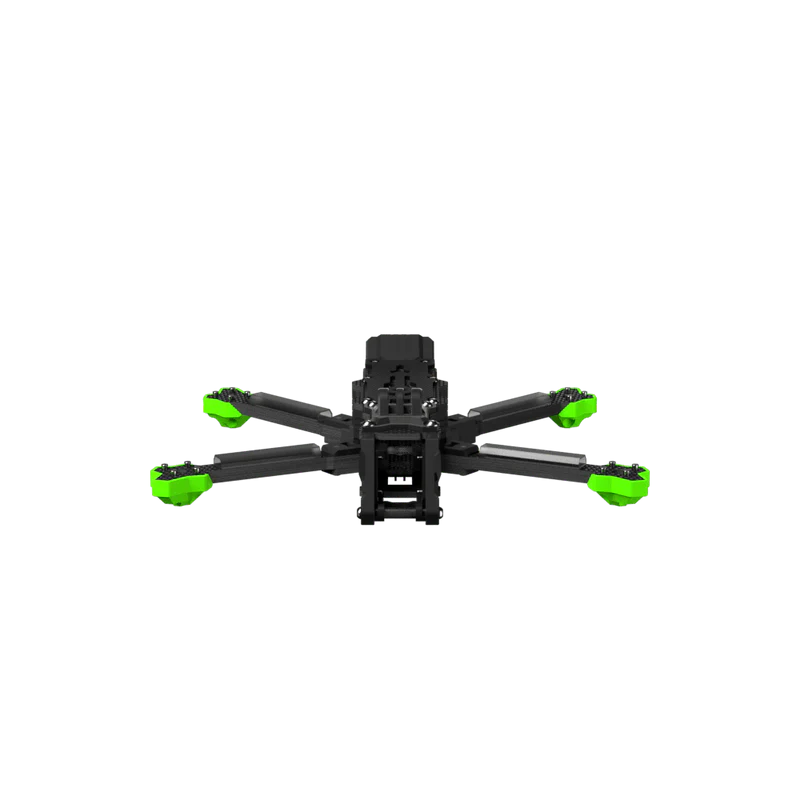

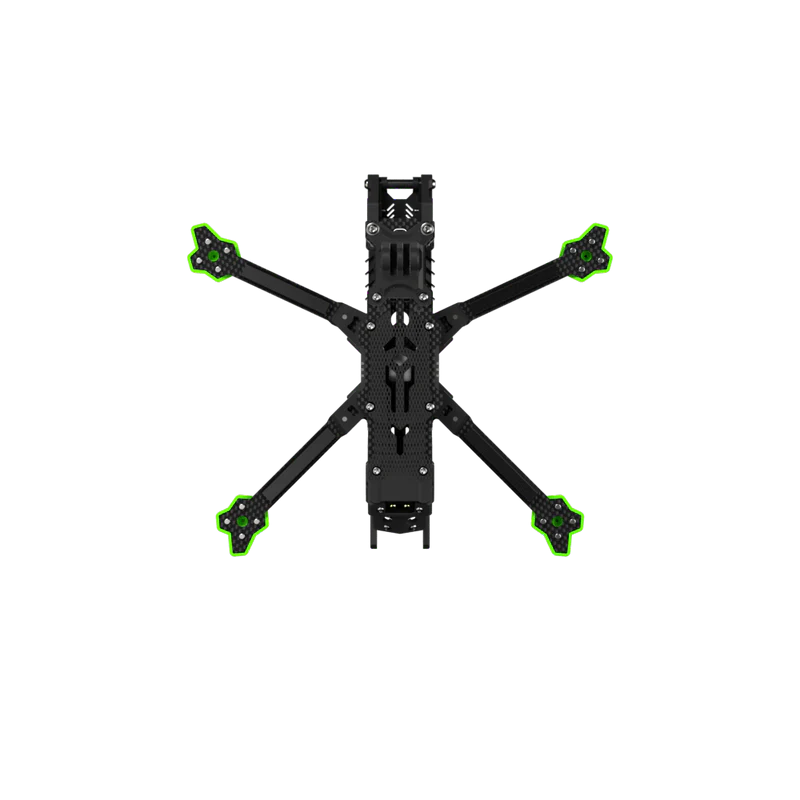

Product Name: Evoque F5 V3 Frame Kit

Frame wheelbase: 236mm (DeadCat-default) / 239mm (True X-switchable)

Frame Dimension(LxWxH): 230*207*54 mm (DeadCat)/207*199*54mm(True X)

Arm Thickness: 6mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 3mm

Max Flight Stack Height: 25mm

Max VTX Height: 13mm

Motor Mounting: 16x16mm /Φ3mm

Flight Stack Mounting: 20*20/Φ3mm

VTX Mounting: 20*20/Φ2mm

Weight: 256g±10g

Compatibility: DJI O4 Air Unit Pro/ BLITZ Whoop 1.6W VTX/ BLITZ Mini Force 600mW VTX

1 x Evoque F5 V3 Frame Kit

1 x Injection-Molded Set

1 x Screw Bag

2x IPEX to RP-SMA Antenna Pigtails

2 x Anti-slip Battery Pad

2 x Battery Strap

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
