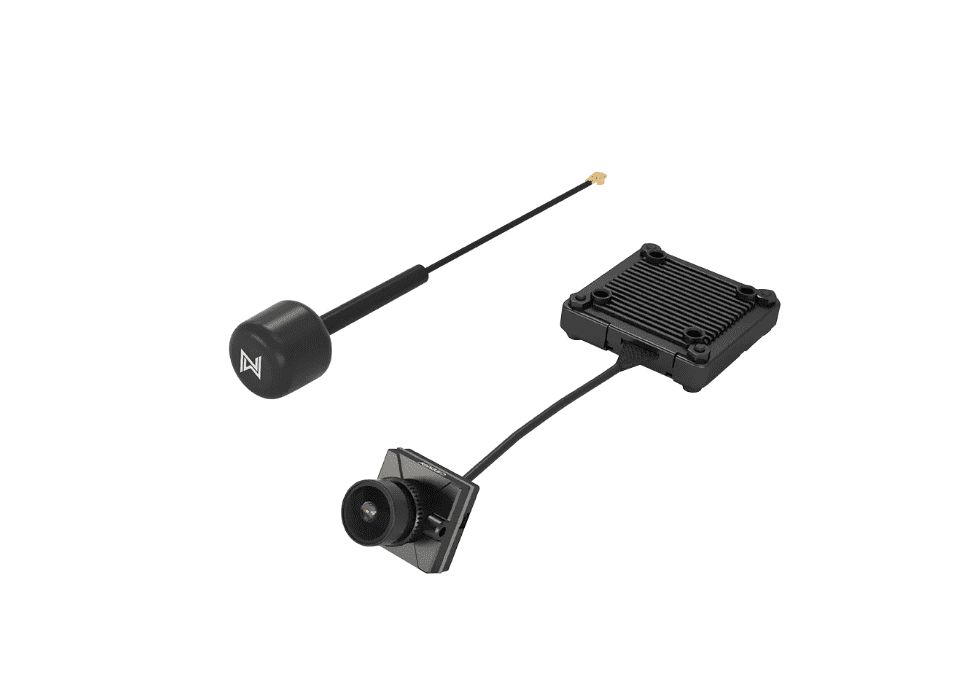

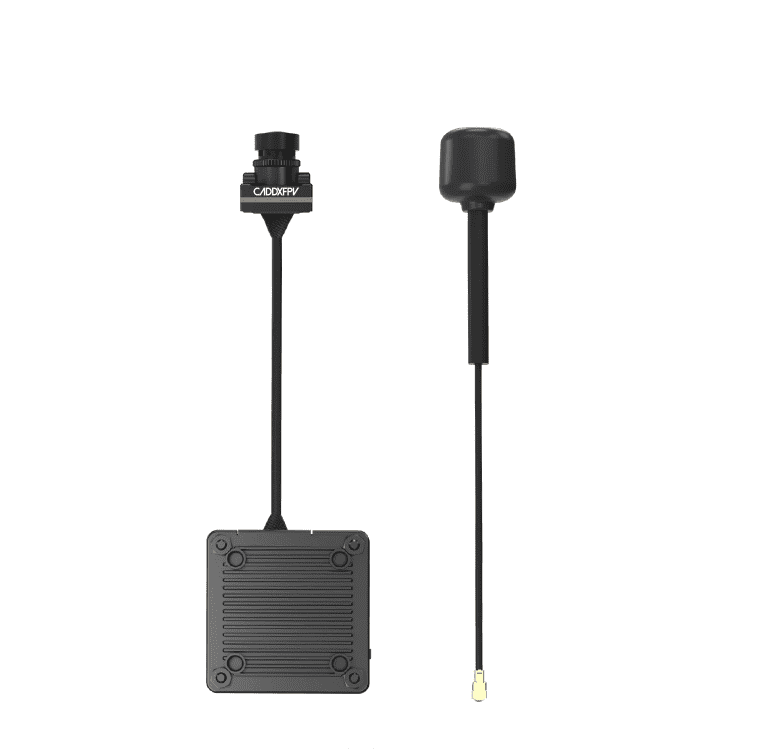

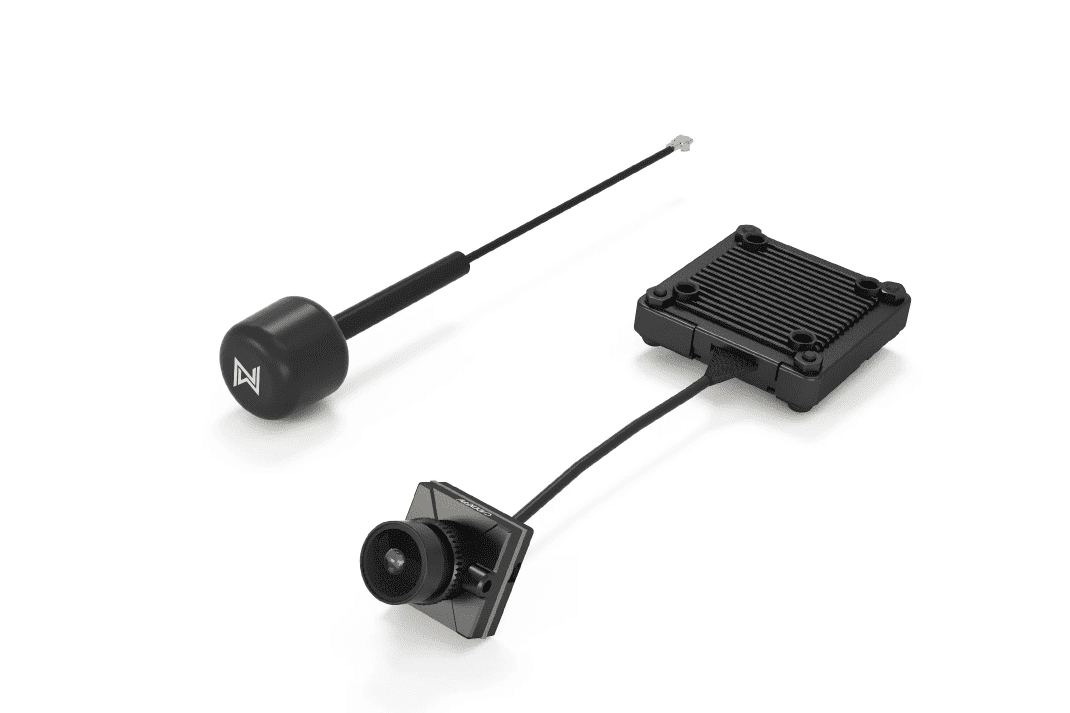

Walksnail Avatar HD Nano Kit V3

140 $

1 in stock (can be backordered)

140 $

1 in stock (can be backordered)

DESCRIPTION

Product Features:

The Walksnail Avatar HD Nano Kit V3 supports 1080P/60fps, with a 4:3 native sensor that provides smooth and stunning images. With this kit, you can capture flying footage with exceptional clarity and detail.

Walksnail Avatar HD Nano Kit V3 is suitable for more drones, with 3.1-13V voltage input and 500mw power output, you’ll be able to fly various kinds of drones with amazing video quality and range.

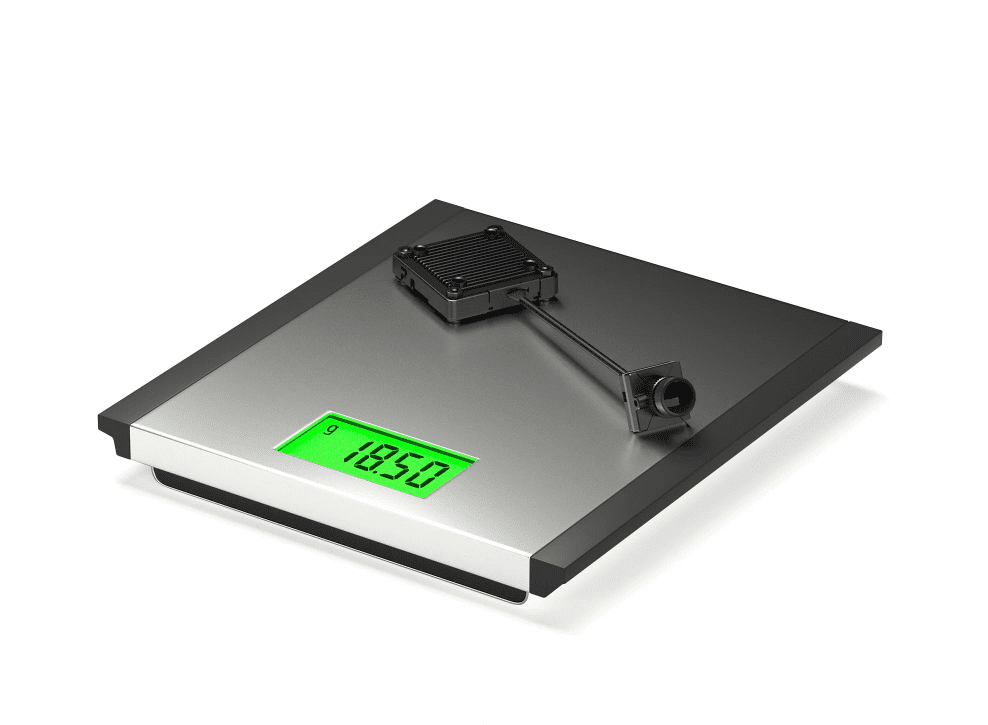

Nano camera V3 with dimensions of 14*14mm and a weight of only 3g, equipped with a 2.1mm lens and 160° FOV, provides clearer and more realistic image quality.

The Avatar vtx comes with 32g built-in storage, it can record 1080p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos.

Canvas Mode：supporting Betaflight, kiss, Inav, Ardu full OSD display and customization, you’ll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control.

Q: Can I use analog channels?/Can I fly with other analog pilots?

A: Yes, when you upgrade the firmware to 34.40.15 version, need switch to racing mode.

Specification
Camera
Model	Avatar HD Nano Camera V3
Image Sensor	1/3.2-Inch 4Mp 4:3 sensor
Resolution	1080P/60fps,720P/120fps,720P/60fps
Ratio	4:3 native / 16:9
Lens	2.1mm
FOV	160°
Aperture	F2.0
Shutter	Rolling Shutter
Min.Illumination	0.001Lux
Weight	3g （without cable）
Dimensions	141416.8mm
Coaxial Cable	90mm(default)/140mm

VTX
Model	Avatar HD Mini VTX V3
Communication Frequency	5.725-5.850GHz
Transmitter Power (EIRP)	FCC:<27dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm
I/O Interface	JST1.04(Power in)JST0.84(USB)
Mounting Holes	25.525.5mm(M2 hole);2020mm(M3 hole)
Dimensions	31.531.59.4mm
Storage	32G
Recording	1080p/720p
Weight	13.4g
Operating Temperature	-20-40℃
Channels	8
Wide Power Input	3.1V-13V
Supported FC System	Betaflight; Inav; Fettec; Kiss; ArduPliot
OSD	Canvas mode
Latency	Average latency 22ms
Antenna	1(IPEX)

VTX Antenna
Model	Avatar V2 antenna
Polarization	LHCP
Bandwidth	5600MHz-6000MHz
Average Gain	1.9dBi
VSWR	≤1.5
Interface	IPEX-1
Line Length	105mm
Dimension	D15mm*L105mm
Weight	2g

Packing List
Avatar HD Nano Kit V3	X1
4 Pin USB Cable	X1
4 Pin Power Cable	X1
M2x4/5/6mm Screws	X2
M2x14mm Screws	X4
M250.5mm washer	X4
2.1×3.4x1mm Gasket	X5
14 to19mm bracket	X1
