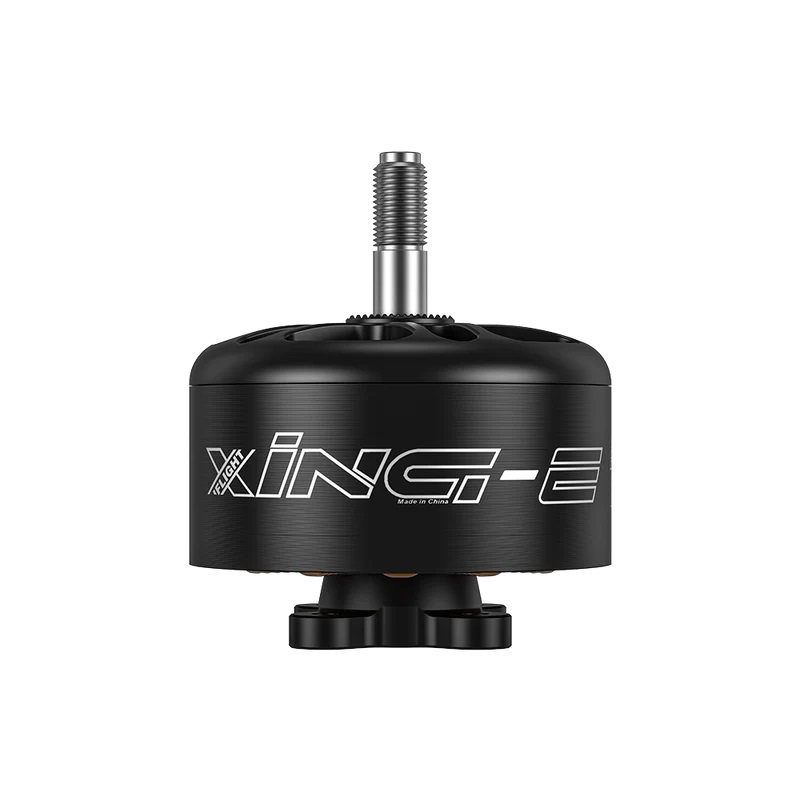

XING-E 3314 Cinelifter Motor
XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance focuses on quality, the XING-E series affordable motors that are strong and durable.
48 $
22 in stock (can be backordered)
- SKU - 1475
XING-E 3314 Cinelifter Motor
XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance focuses on quality, the XING-E series affordable motors that are strong and durable.
48 $
- SKU - 1475
22 in stock (can be backordered)
DESCRIPTION
XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance focuses on quality, the XING-E series affordable motors that are strong and durable.

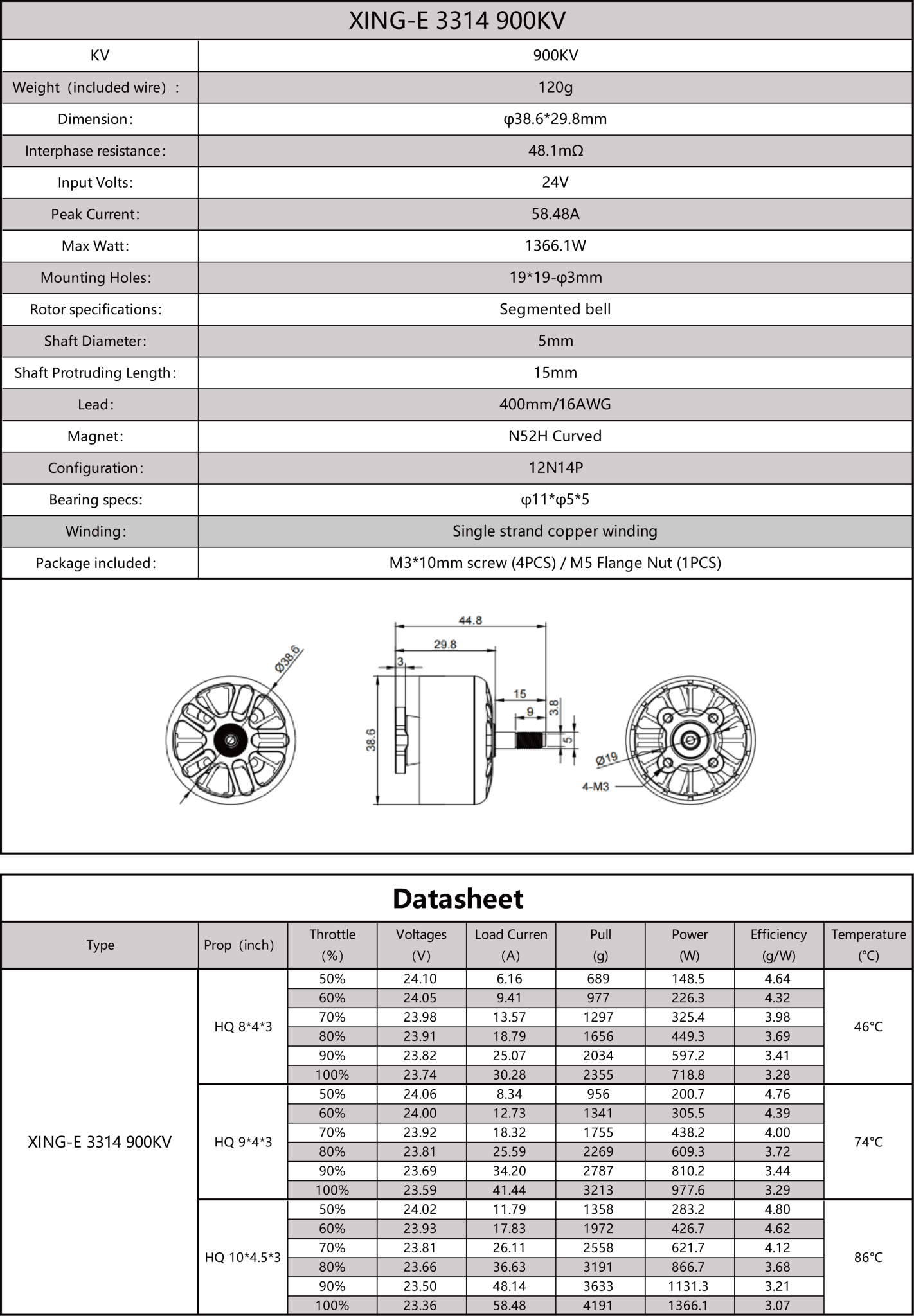

Specifications
Model: XING-E 3314 Motor
KV: 900KV
Weight(included wire): 120g
Dimension: ฯ38.6*46.8mm
Interphase Resistance: 48.1mฮฉ
Input Volts: 24V
Peak Current: 58.48A
Max Watt: 1366.1W
Mounting Holes: 19*19 ฯ3mm
Shaft Diameter: 5mm
Rotor Specifications: Segmented bell
Shaft Protruding Length: 15mm / 17mm
Lead: 400mm/16AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: ฯ11*ฯ5*5
Winding: Single Strand copper winding
Packing List
1 x XING-E 3314 900KV Brushless Motor
4 x M3*10 screws
1 x M5 Flange Nut
